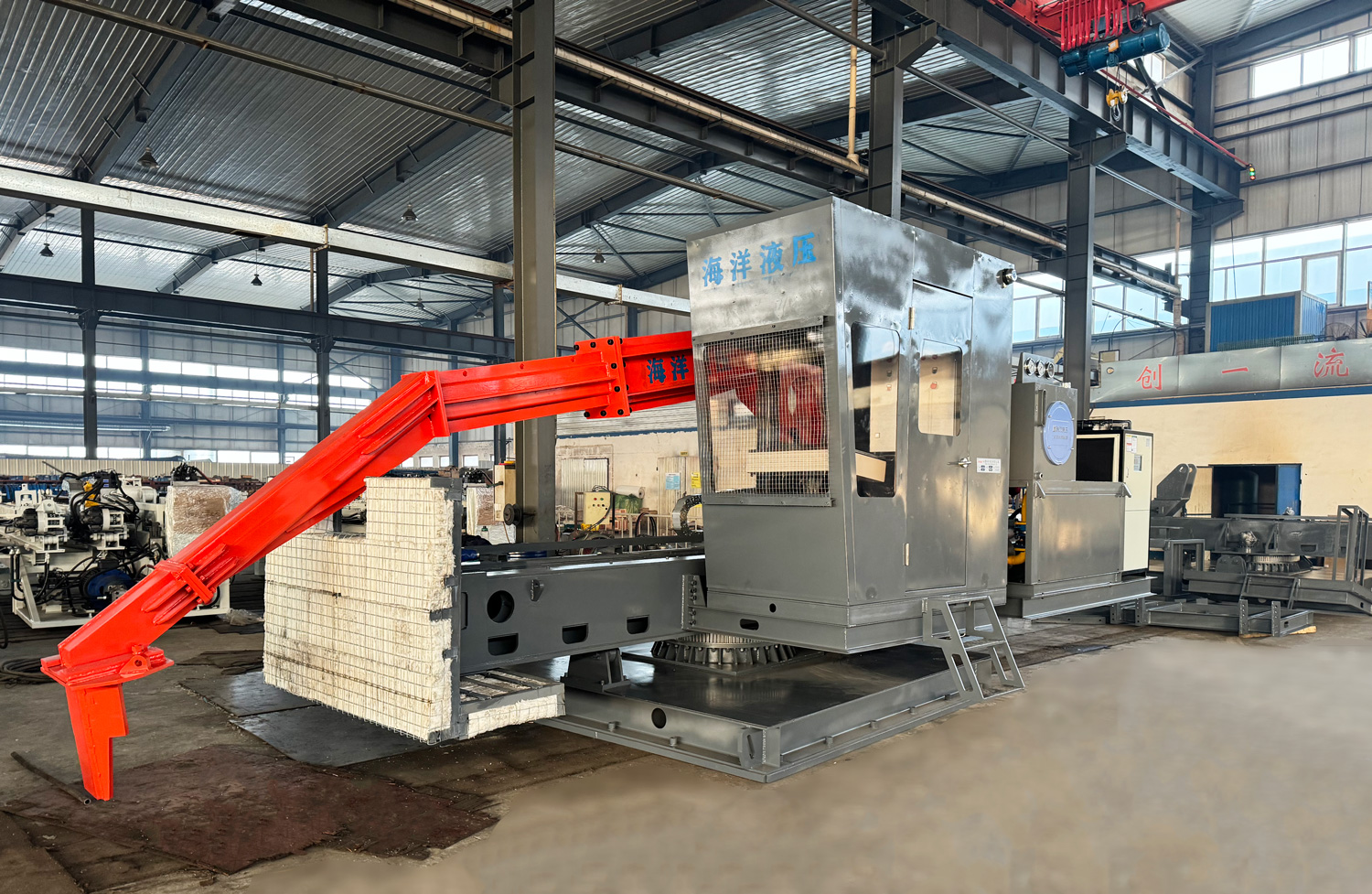

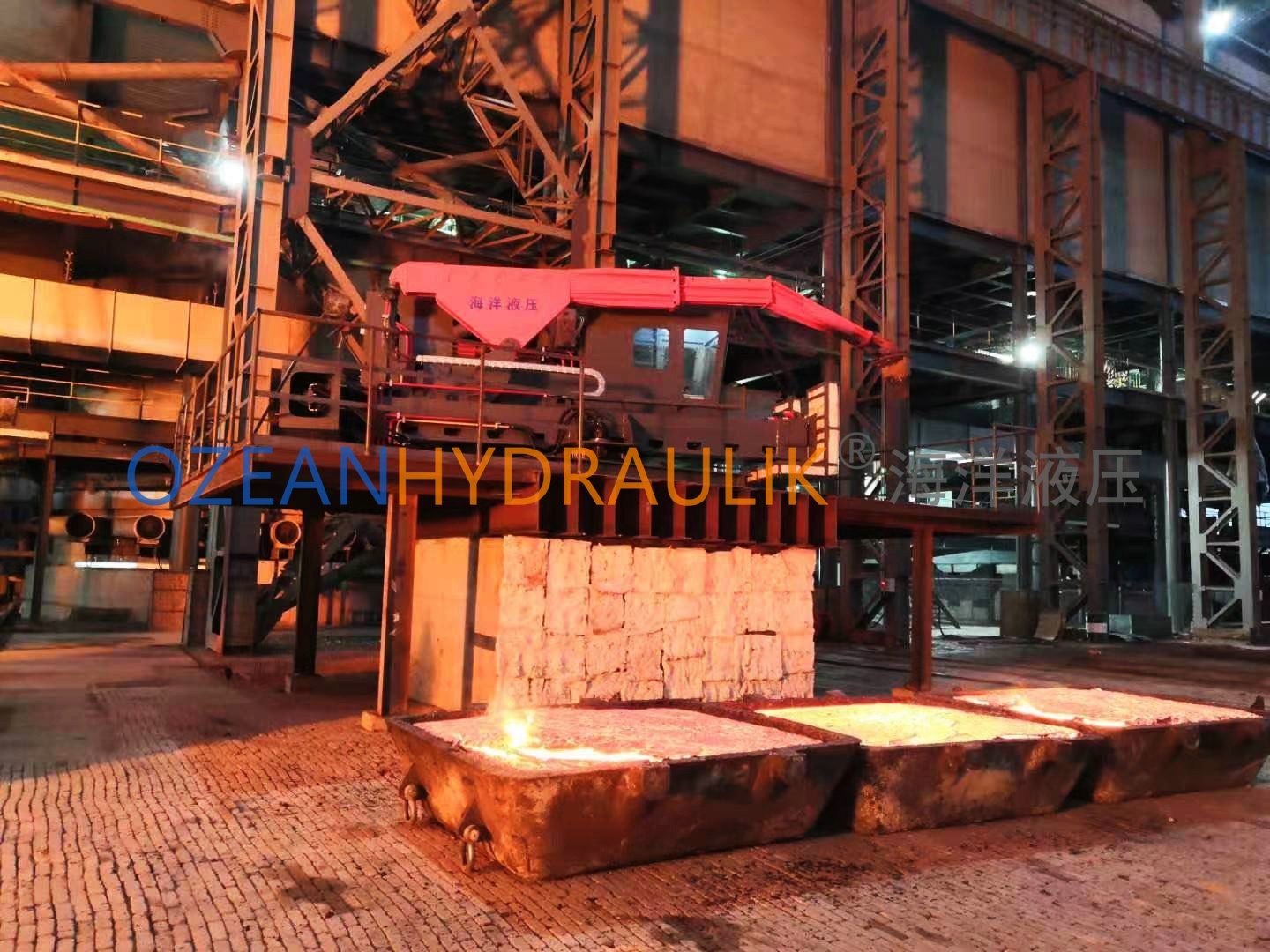

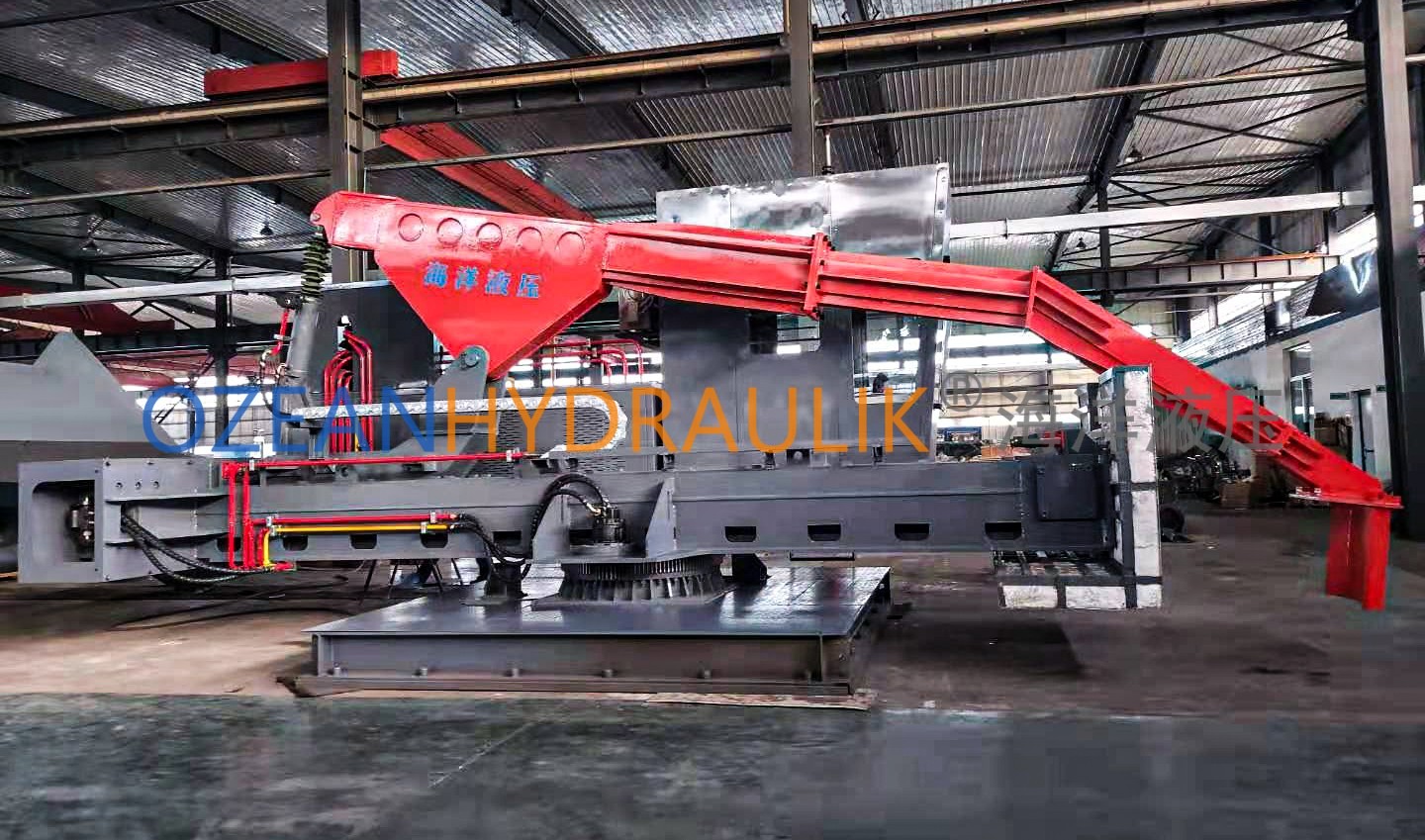

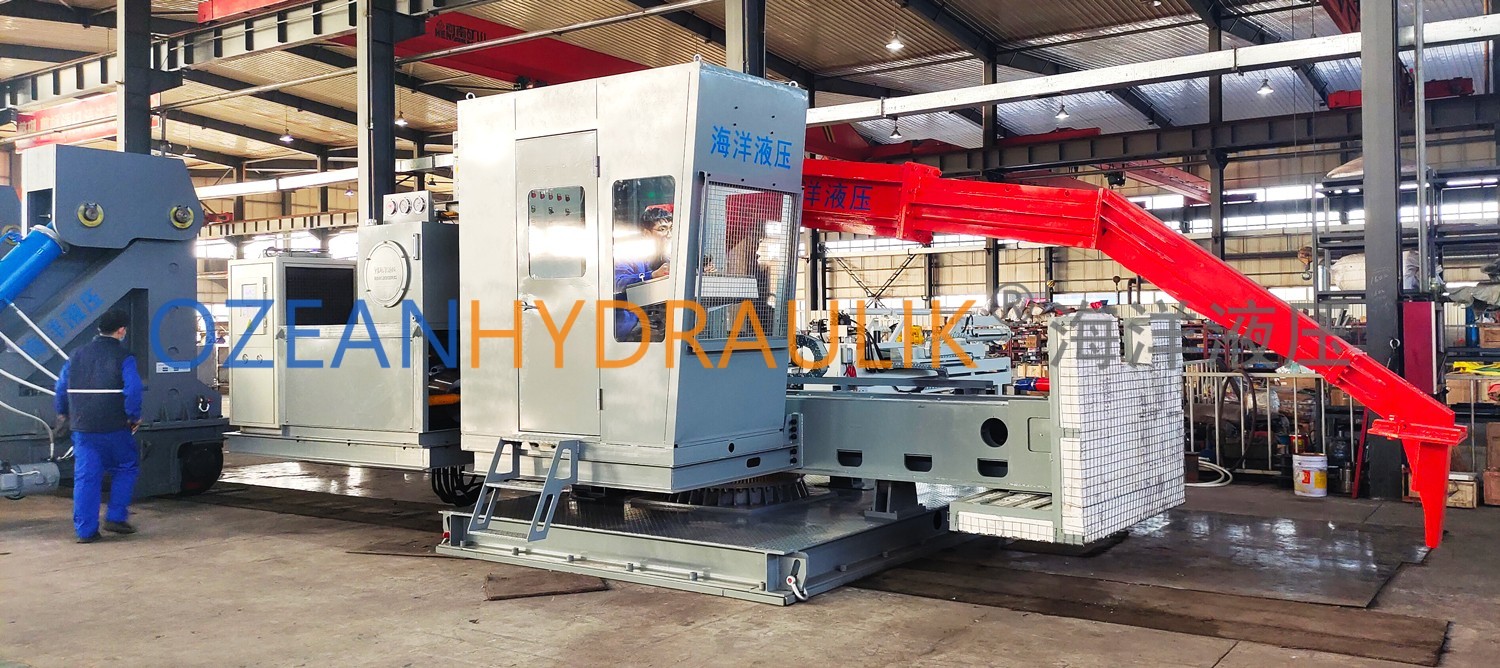

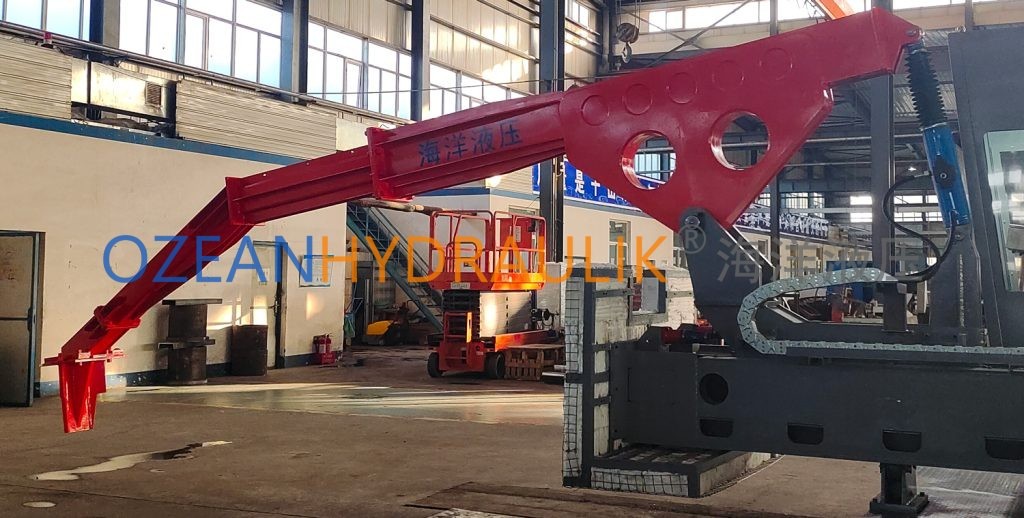

Slag Skimmer

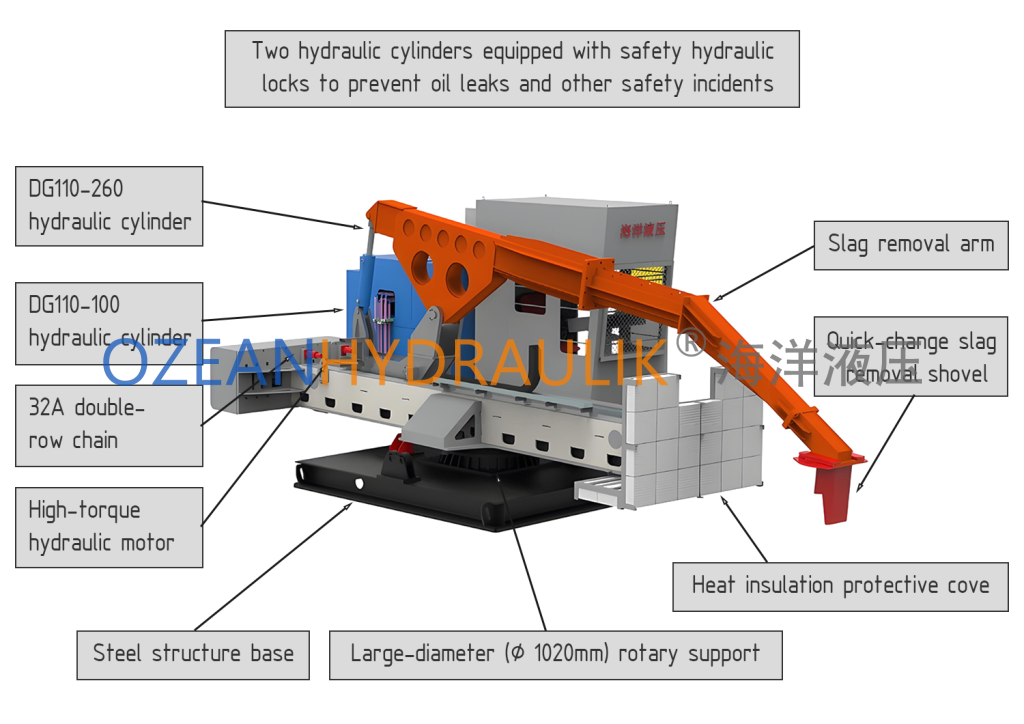

The Slag Skimmer operates with a hydraulic motor that drives a chain for slag removal tasks.
Slag Skimmer
The Slag Skimmer operates with a hydraulic motor that drives a chain for slag removal tasks.
The equipment boasts the following advantages:

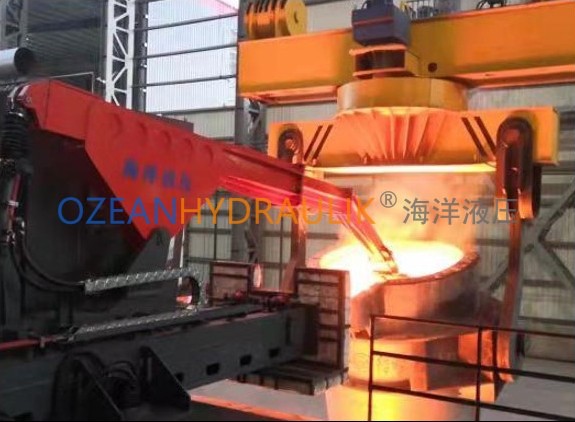

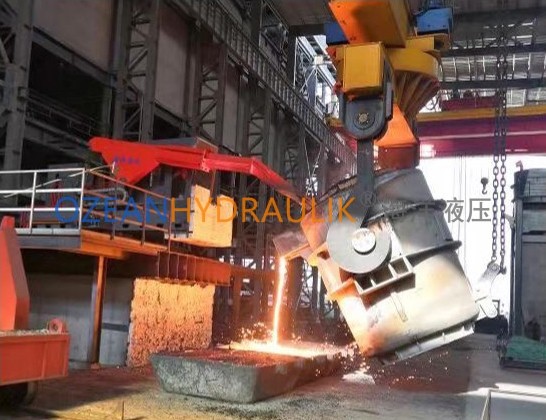

As a specialized device, it replaces manual labor for slag removal operations with a slag removal force of >1 ton.

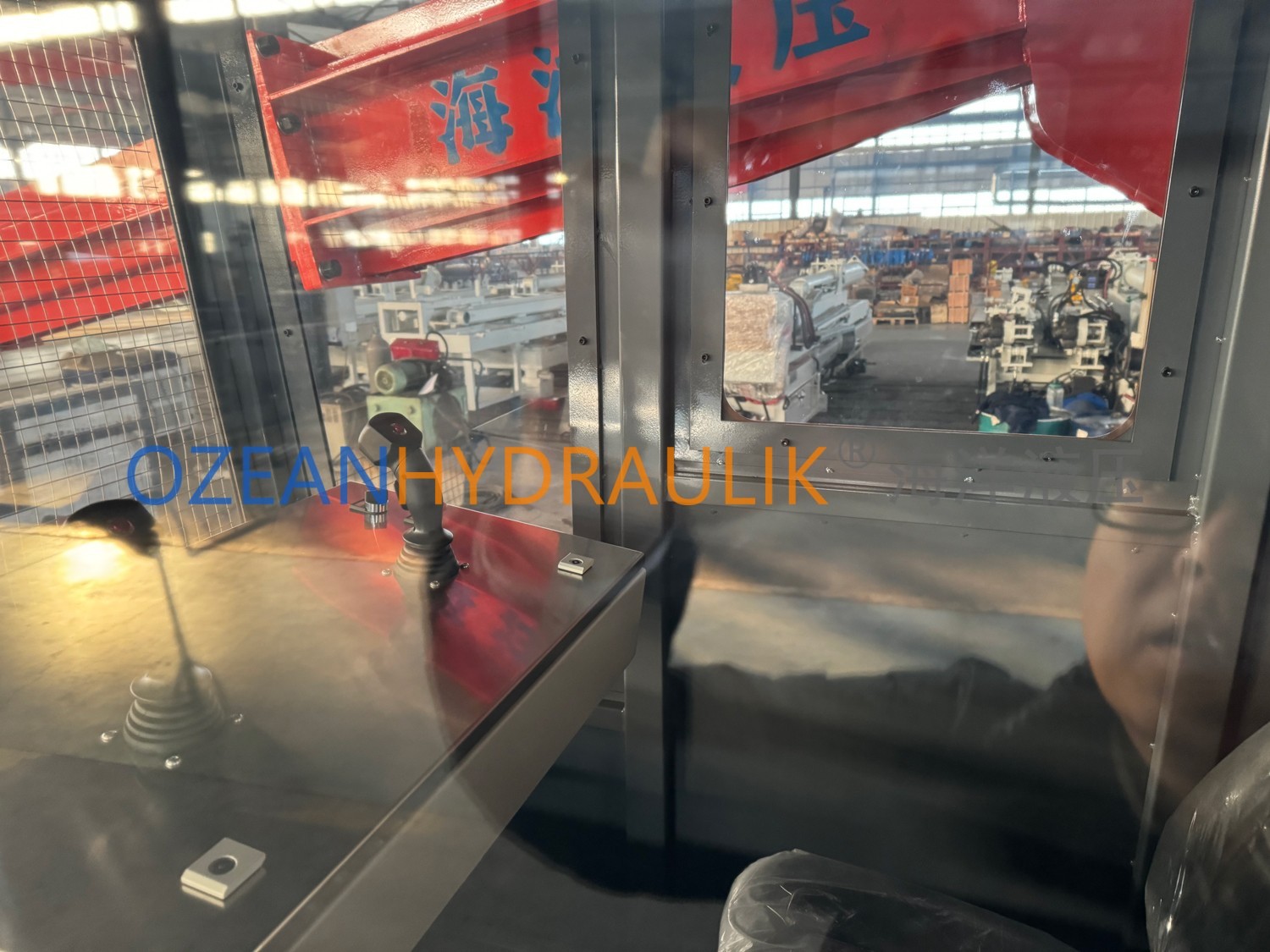

The device features remote control operation, enhancing safety during operation.
The slag removal arm moves at a speed of 1 m/s, ensuring high slag removal efficiency.
Product Description
Blueprints / Drawings
Note: These drawings are for reference only. The final design will be customized based on your requirements.
Outline Drawing
Hydraulic Circuit Diagram
Layout Drawing
Main Parameter
| 1 | Slag force | 1000 kg |
| 2 | Slag Stroke | 3300 mm |
| 3 | Slag Moving speed | 1 m/s |
| 4 | Up and down stroke of slag spade | 1000 mm |
| 5 | Up and down speed of slag spade | 500 mm/s |
| 6 | Turning angle of arm | 1 r/min |
| 7 | Turing angle | -90°～10° |
| 8 | Total weight | 10 t |
| 9 | Length * width * height (mm) | 6850 * 2950 * 3270 |
The above parameters are for reference; customization is available according to specific requirements.
Supply Contents:

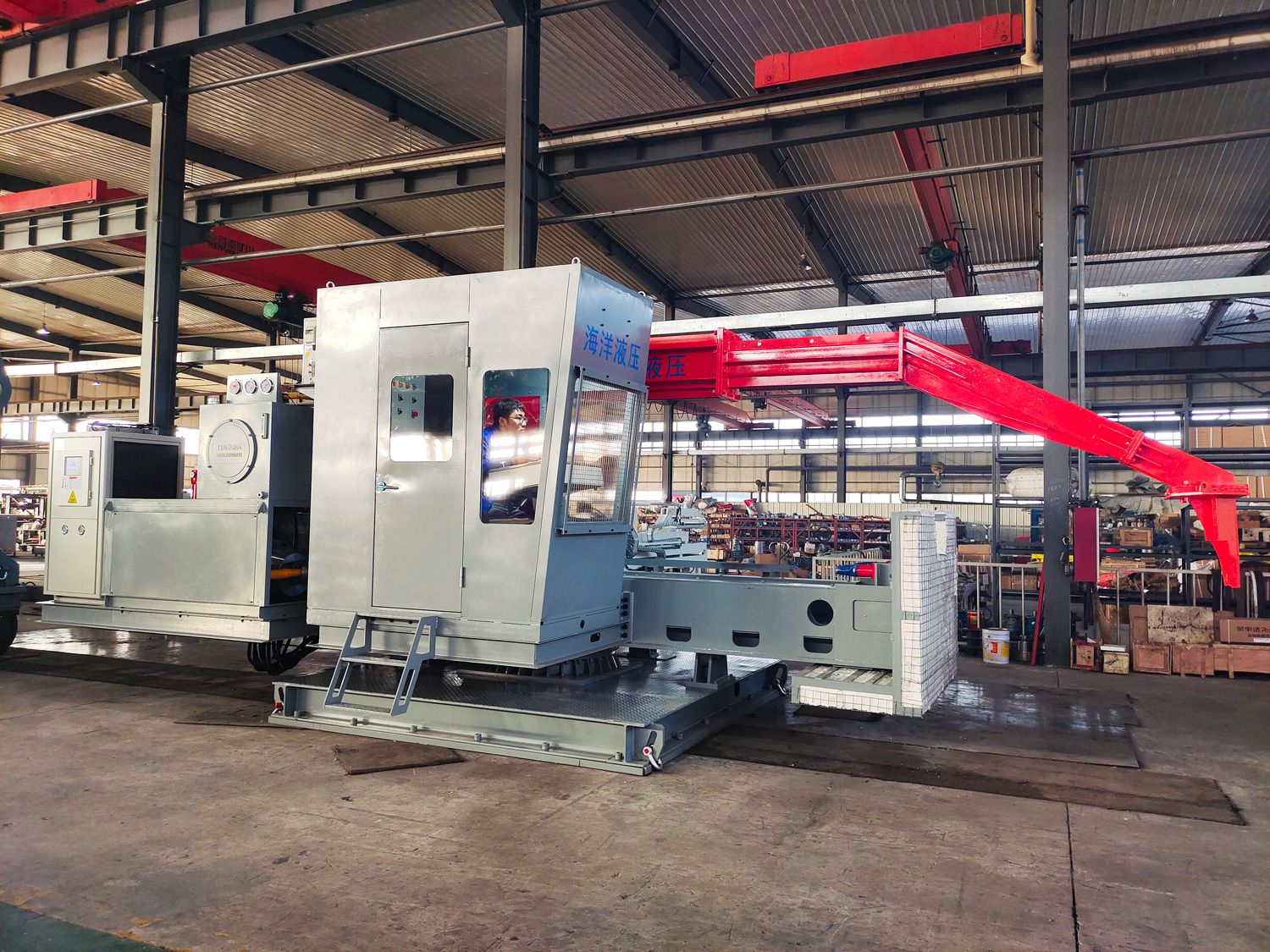

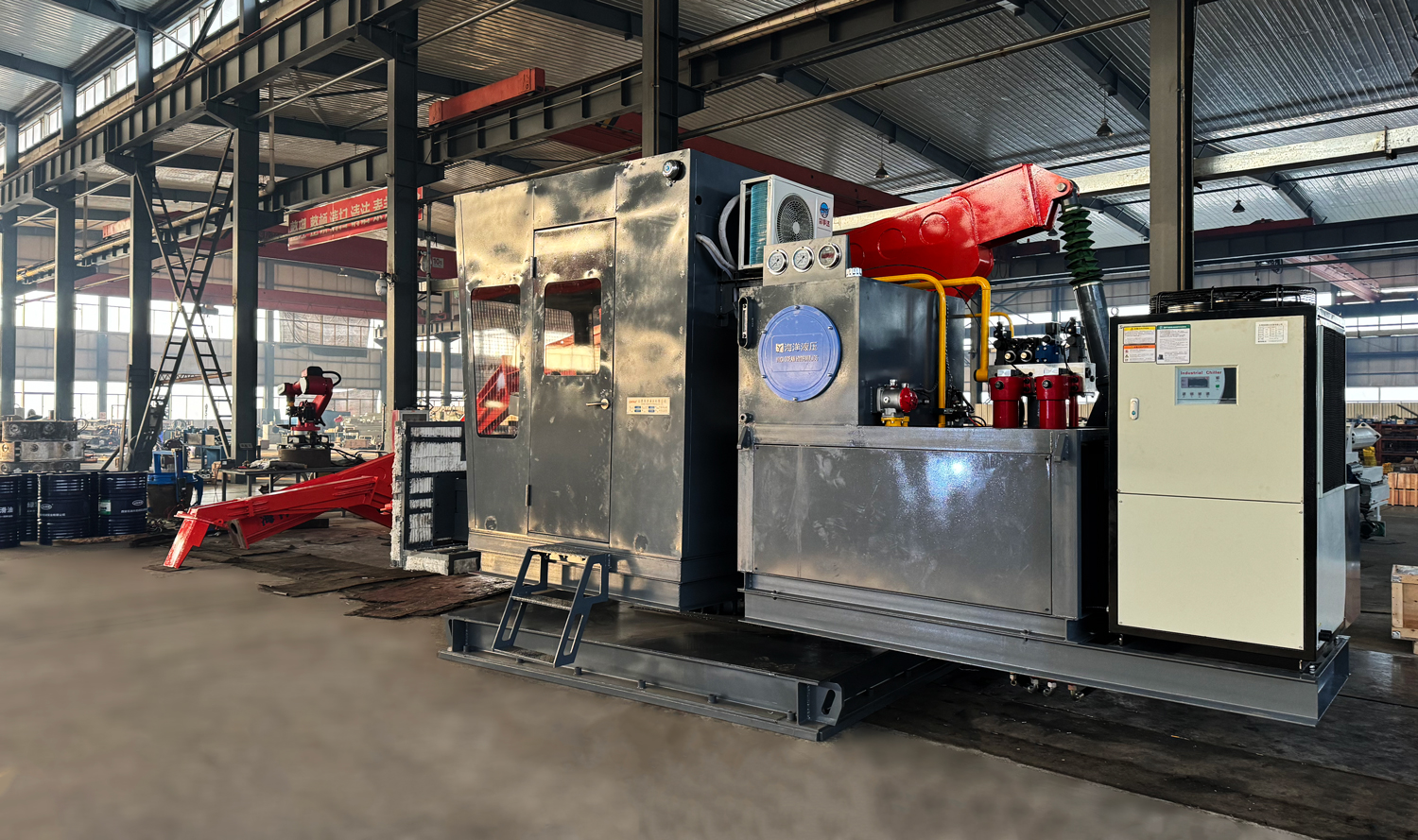

1 Slag Skimmer + 1 set of supporting hydraulic system + 1 set of control system.
