Hydraulic-tilting transfer ladle system delivers
The ladle tilting machine utilizes hydraulic cylinders to tilt the ladle of molten iron.
Hydraulic-tilting transfer ladle system delivers
Maximum load 80 tons
The ladle tilting machine utilizes hydraulic cylinders to tilt the ladle of molten iron.
This equipment offers several advantages:
As a specialized device, it reduces the frequent use of overhead cranes and extends the lifespan of the steel wire ropes.
The operation can be conducted remotely, enhancing safety for operators.
It includes a dedicated dust removal system, beneficial for dust control during the casting process to meet stringent environmental protection requirements.
Processing

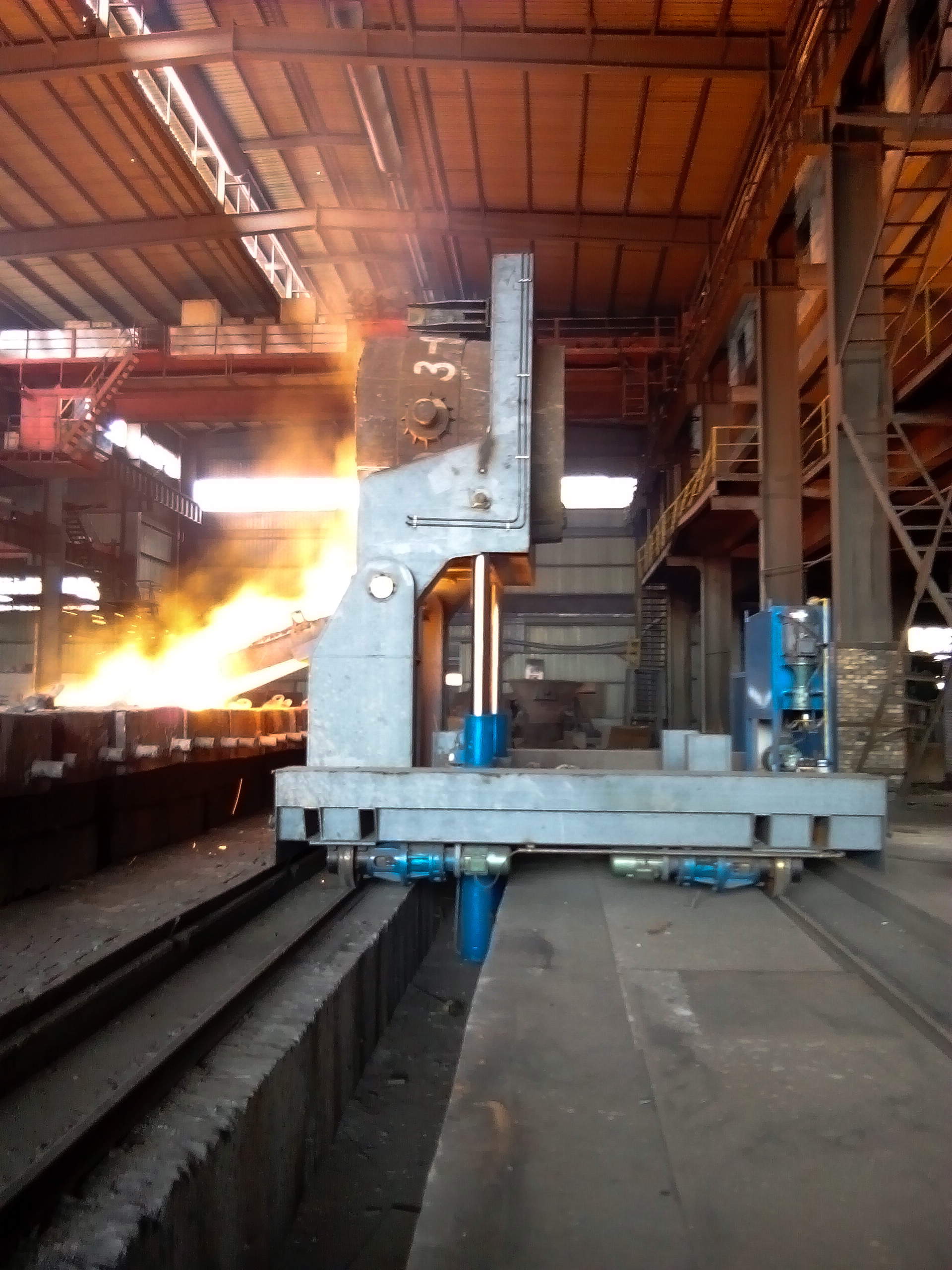

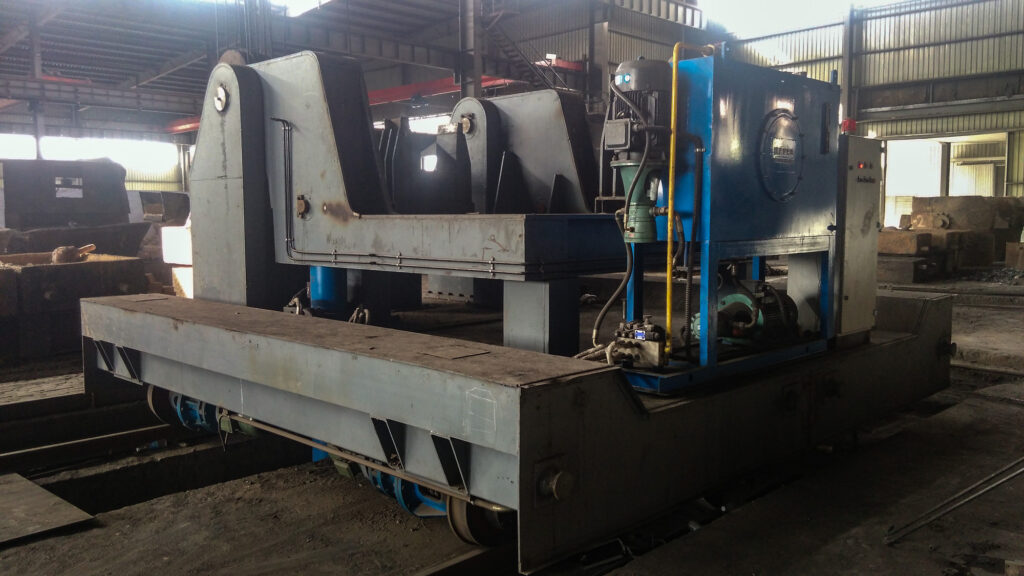

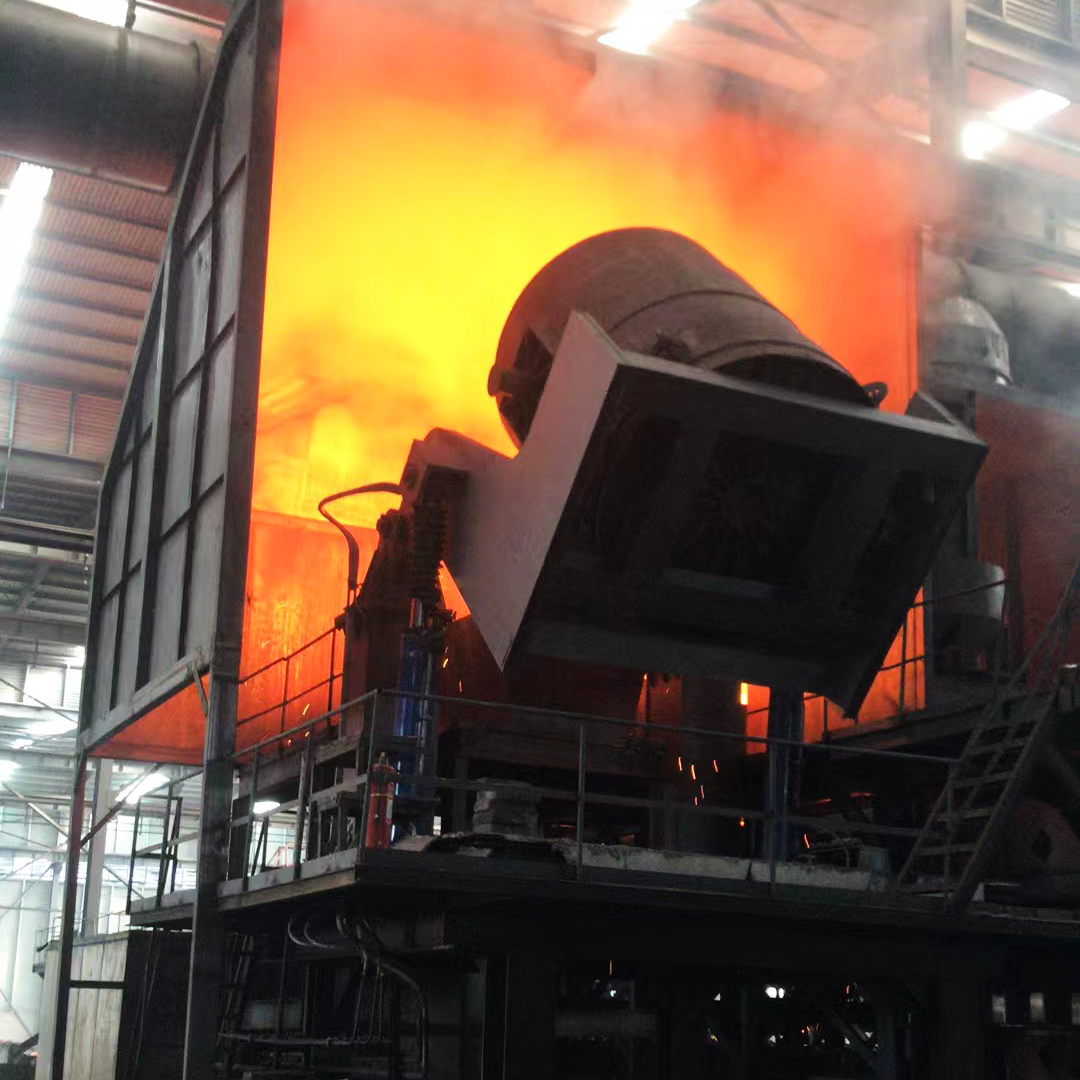

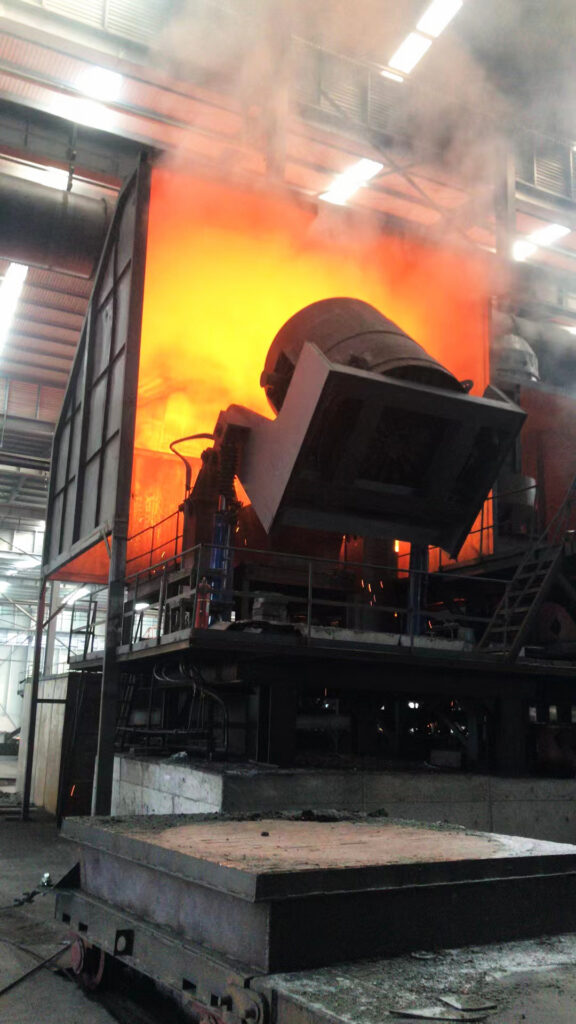

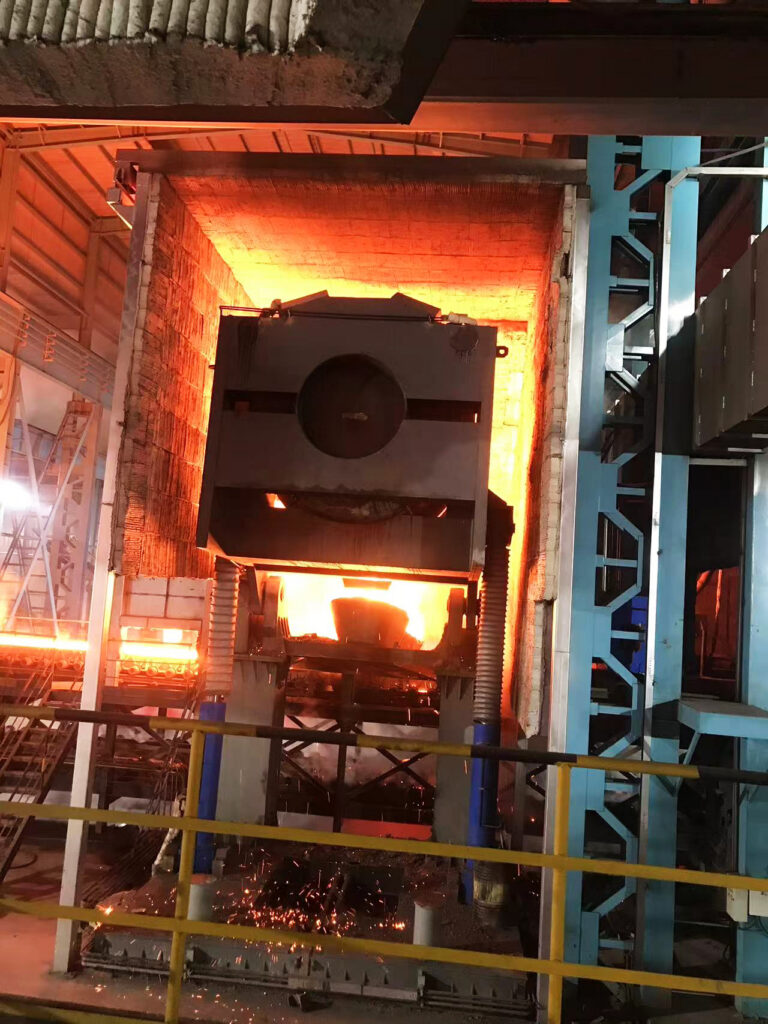

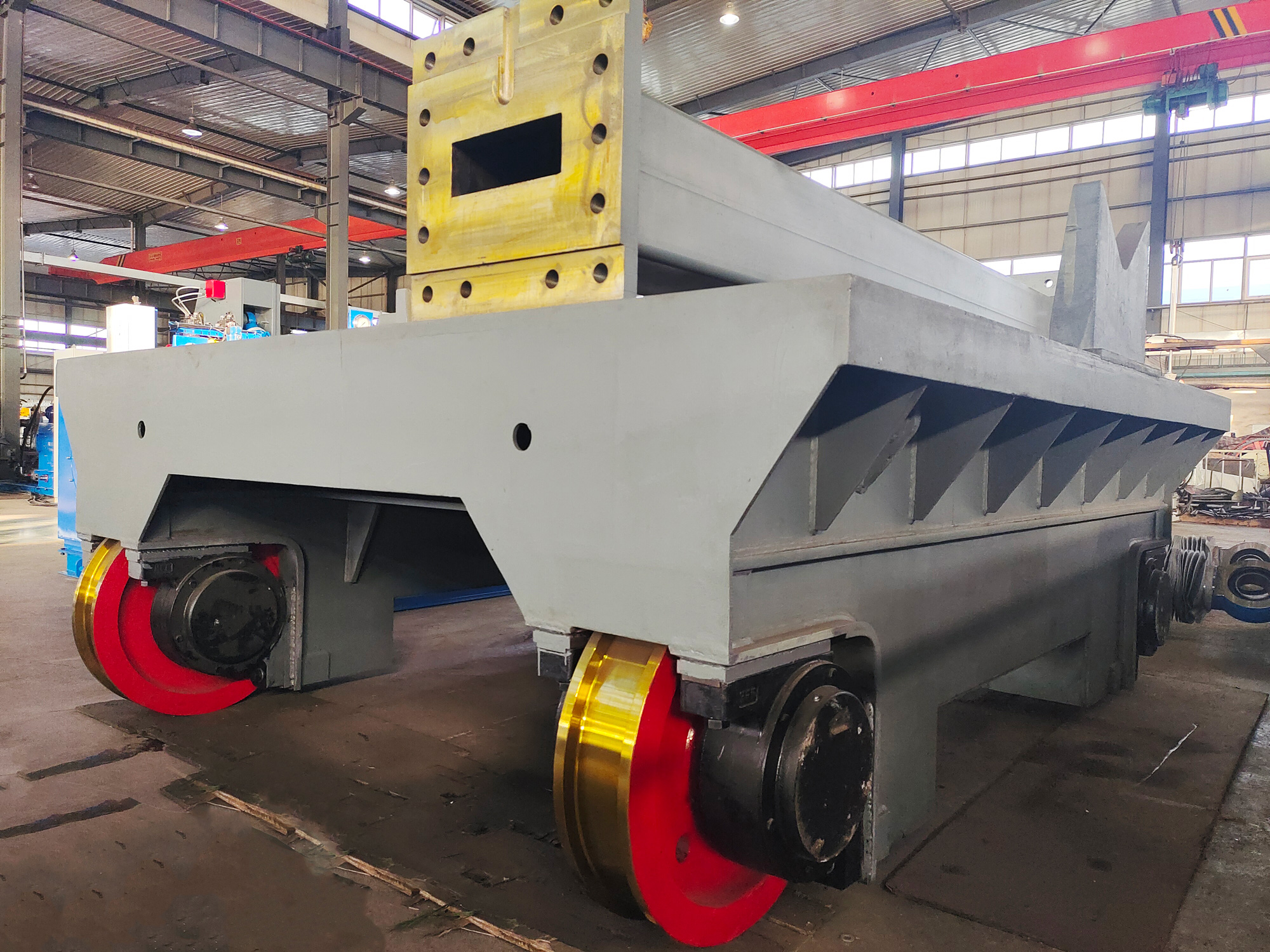

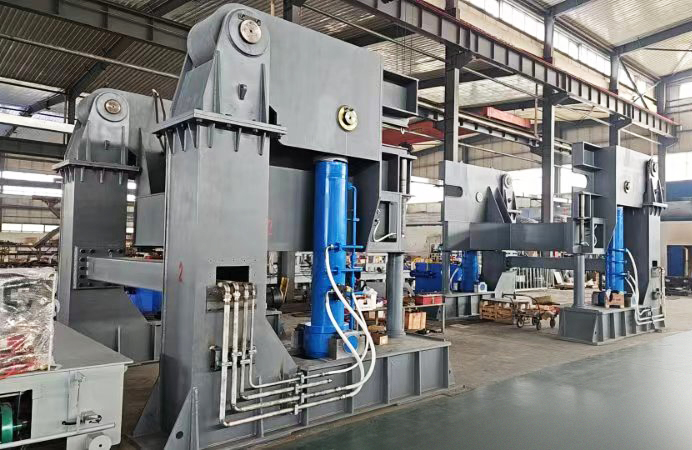

On - Site
Blueprints / Drawings
Note: These drawings are for reference only. The final design will be customized based on your requirements.

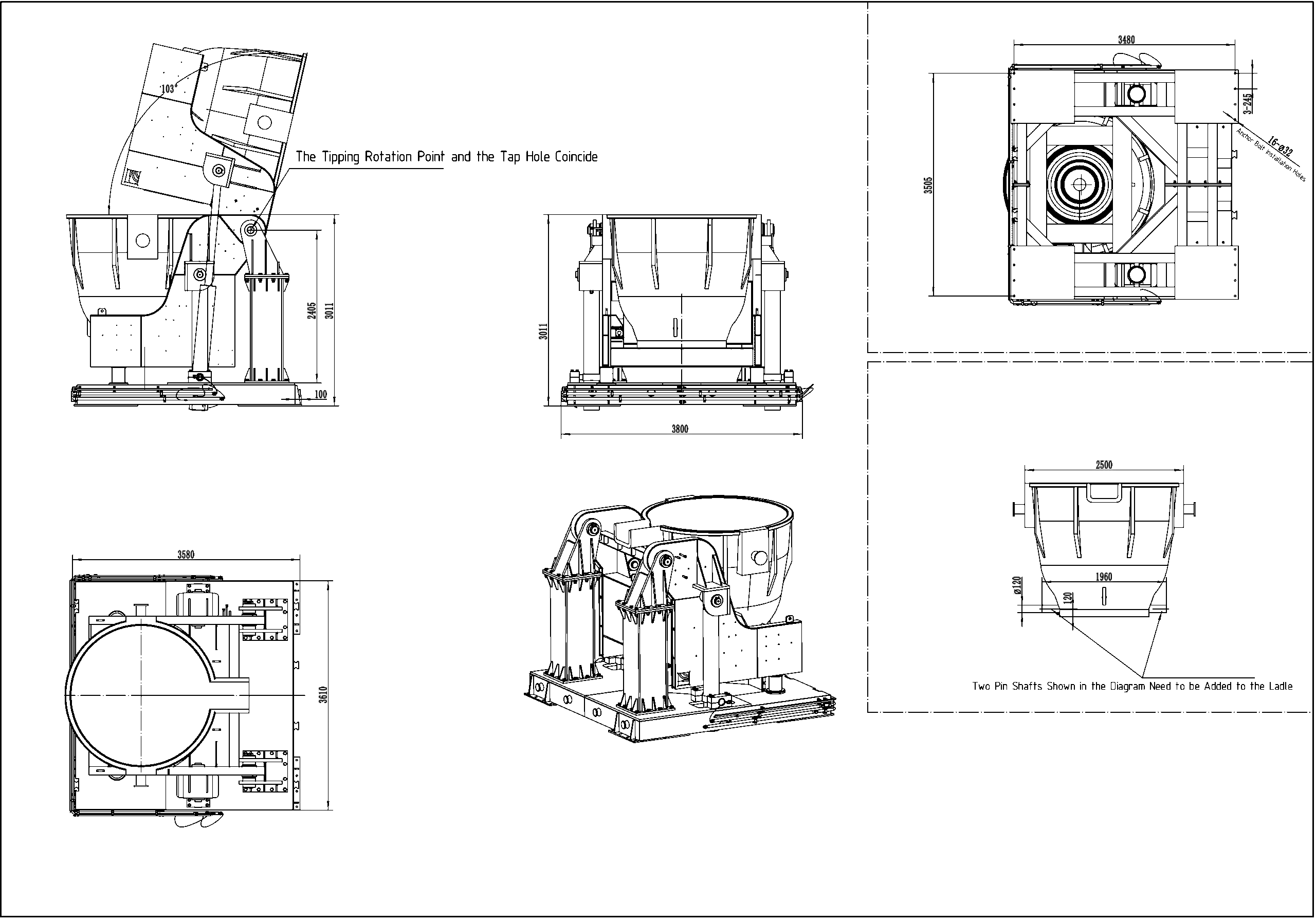

Outline Drawing
Hydraulic Circuit Diagram
Layout Drawing
Main Parameter
| 1 | Tilting speed | Adjustable from 3°/min to 20°/min |
| 2 | Lowering speed | 30°/min |
| 3 | Maximum tilting angle | 115° |
| 4 | Maximum load | 80 tons |
| 5 | Lifting hydraulic cylinder | DG250-1900 |
| 6 | System working pressure | 14 MPa |
| 7 | Hydraulic system capacity | 800L |
| 8 | Total power of the device | 30KW |
| 9 | Total weight of the device | 18 tons |
| 10 | Dimensions（Length * width * height） | 4410 * 3880 * 3363 mm |
The above parameters are for reference; specifics will be determined according to actual needs.
Supply Content:
One (1) ladle tilting machine
One (1) set of the accompanying hydraulic system
One (1) set of the control system
