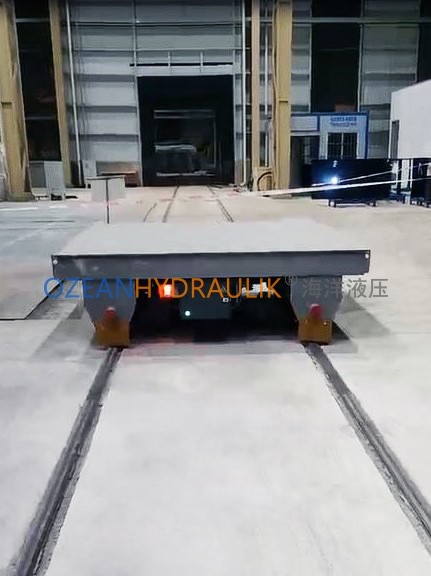

Low-voltage Power-feed Rail Haulage System
Low-voltage Power-feed Rail Haulage System - Image 2
Low-voltage Power-feed Rail Haulage System - Image 3
Low-voltage Power-feed Rail Haulage System - Image 4

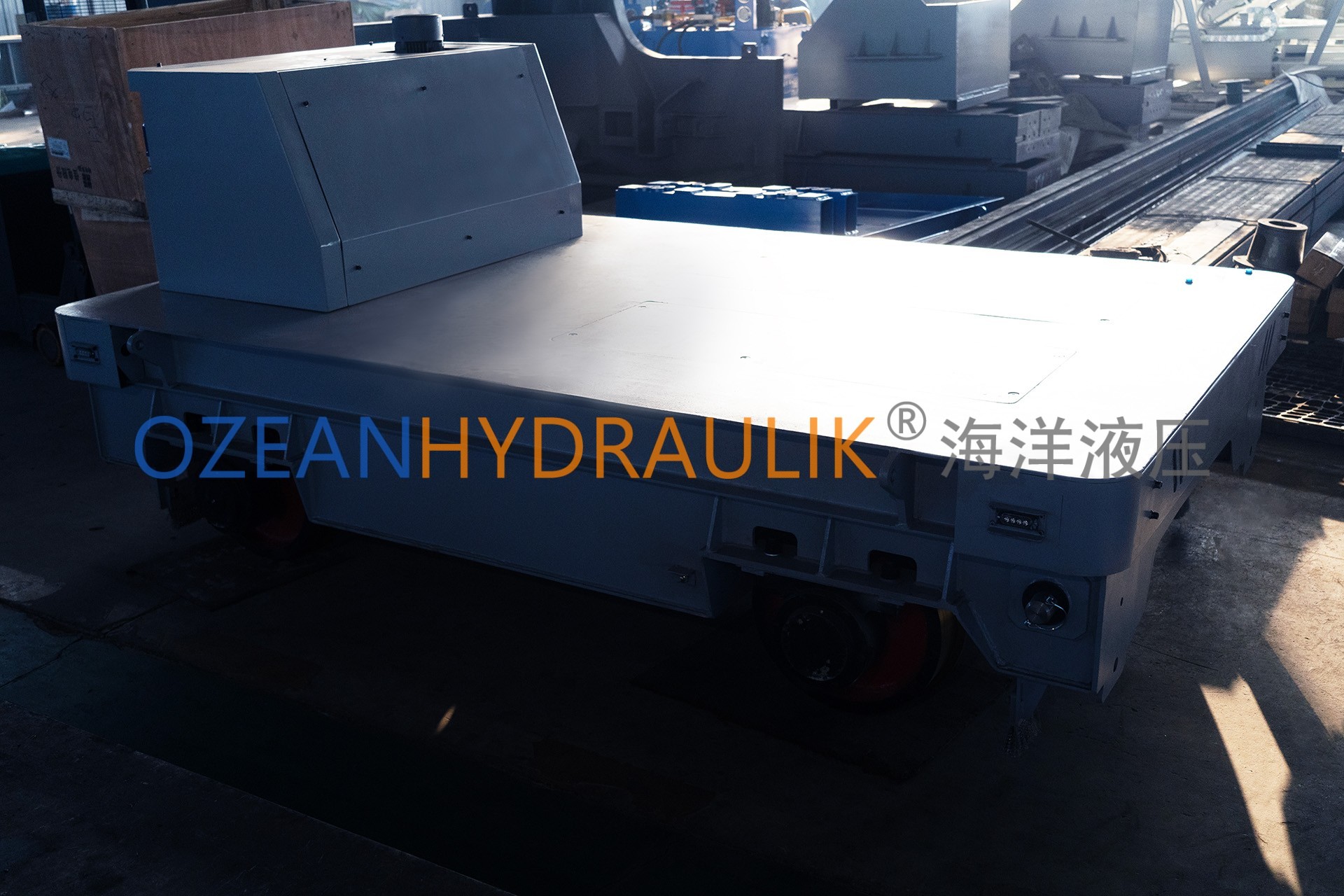

Low-voltage Power-feed Rail Haulage System

Utilizing a 36V low-voltage AC rail power supply, the system draws electrical energy from the rails via the haulage vehicle, which is then stepped up to 380V by the onboard device to drive the traction motor. This enables the haulage of flatcars carrying loads of several hundred tons along the tracks. The technology replaces traditional steel cable traction methods, offering advantages such as high safety, strong reliability, and an elevated level of automation.

Low-voltage Power-feed Rail Haulage System

Safety Voltage：36V
Load Capacity：6-100t

Utilizing a 36V low-voltage AC rail power supply, the system draws electrical energy from the rails via the haulage vehicle, which is then stepped up to 380V by the onboard device to drive the traction motor. This enables the haulage of flatcars carrying loads of several hundred tons along the tracks. The technology replaces traditional steel cable traction methods, offering advantages such as high safety, strong reliability, and an elevated level of automation.

Application Areas:

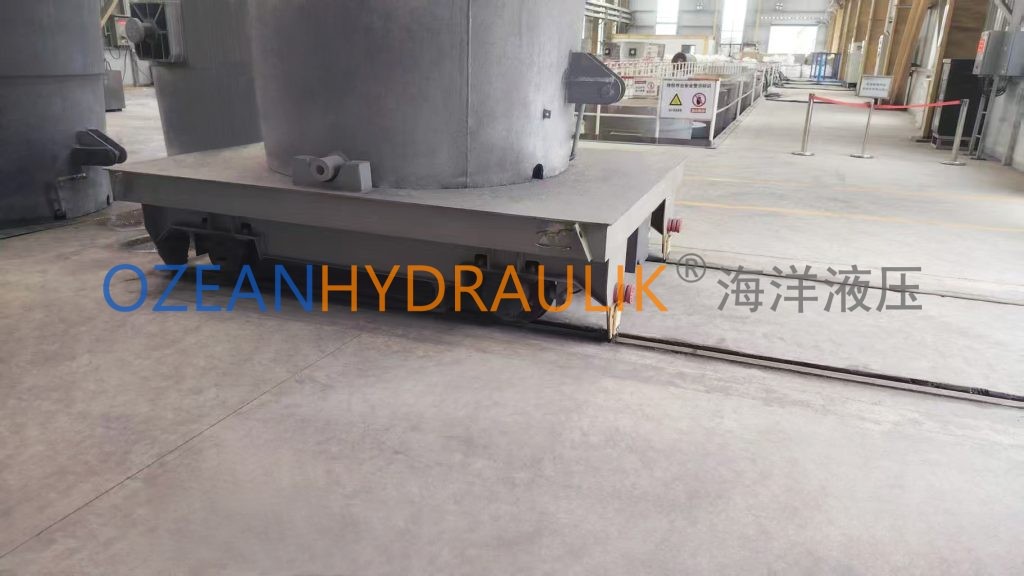

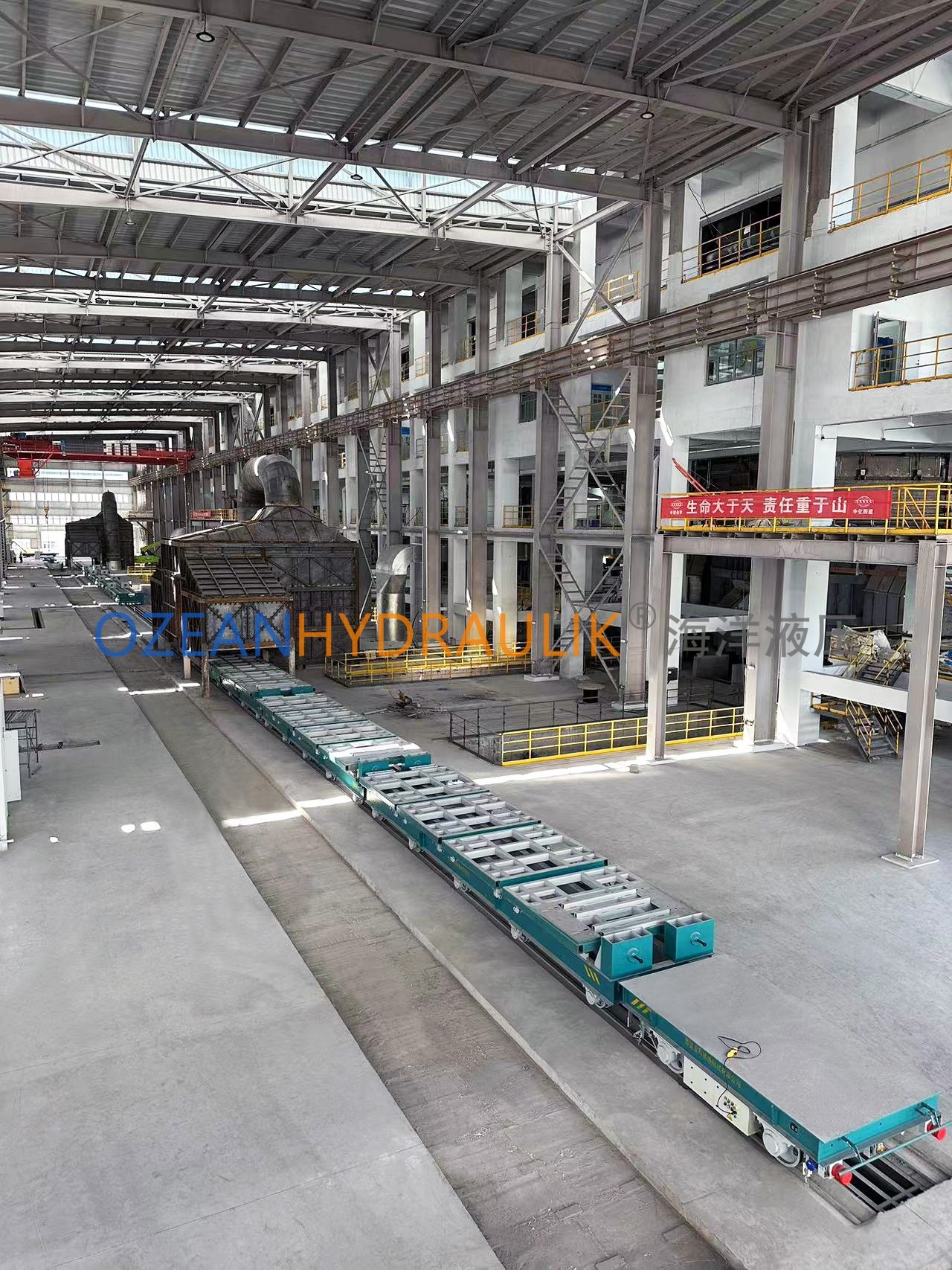

For material transport within factory workshops, including long-distance travel between workshops, operation on curved and circular tracks, and travel across switching tracks.

Product Description

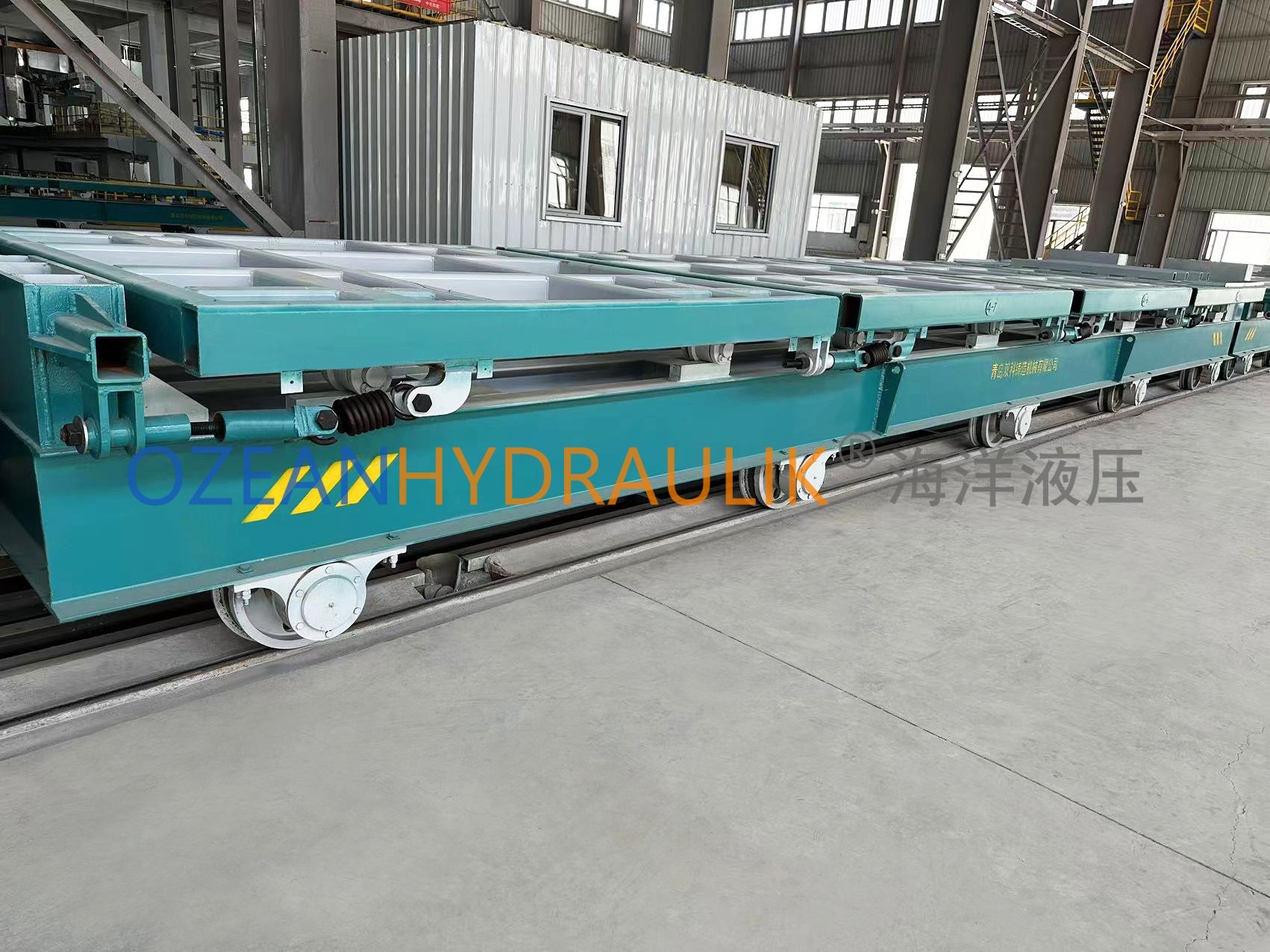

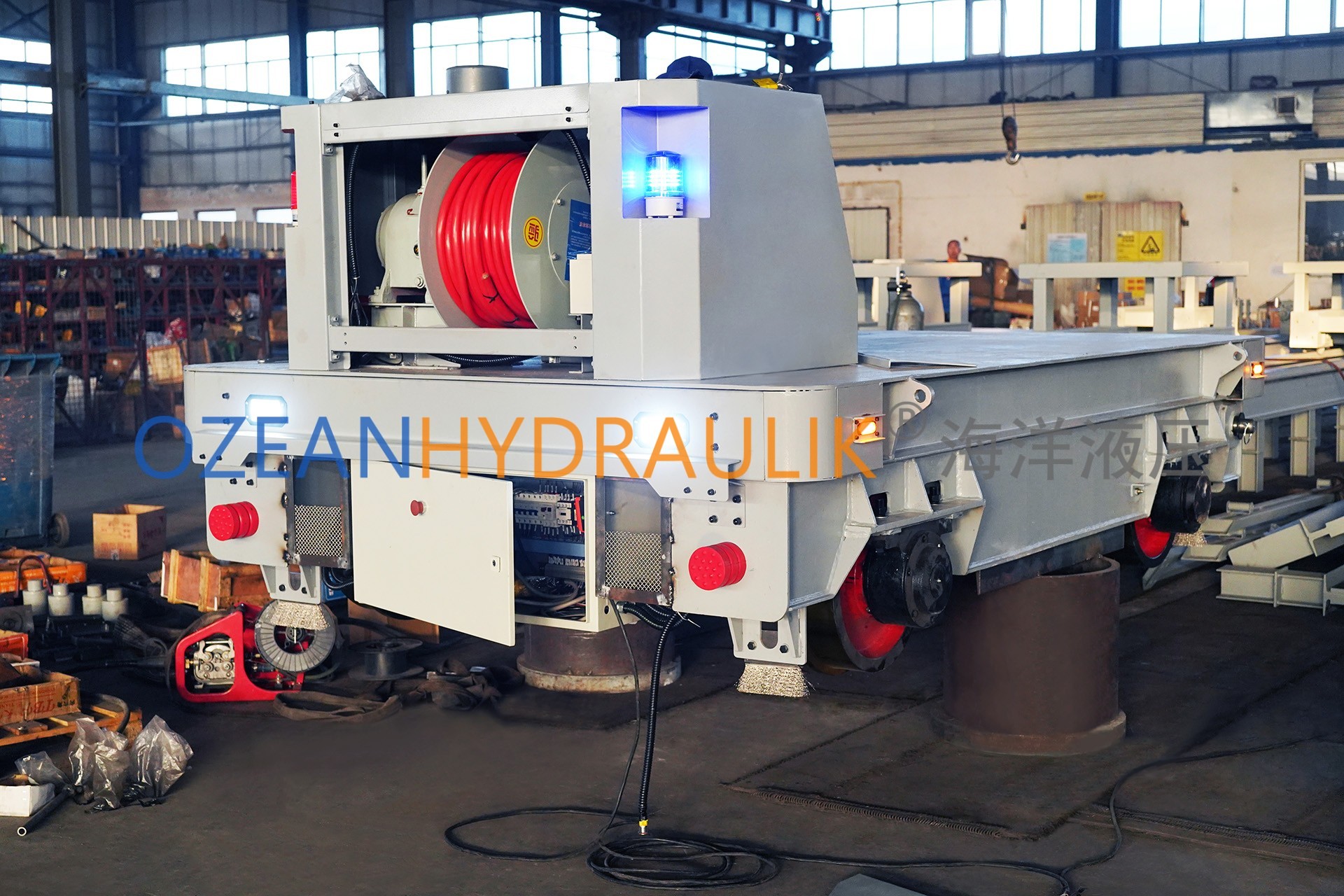

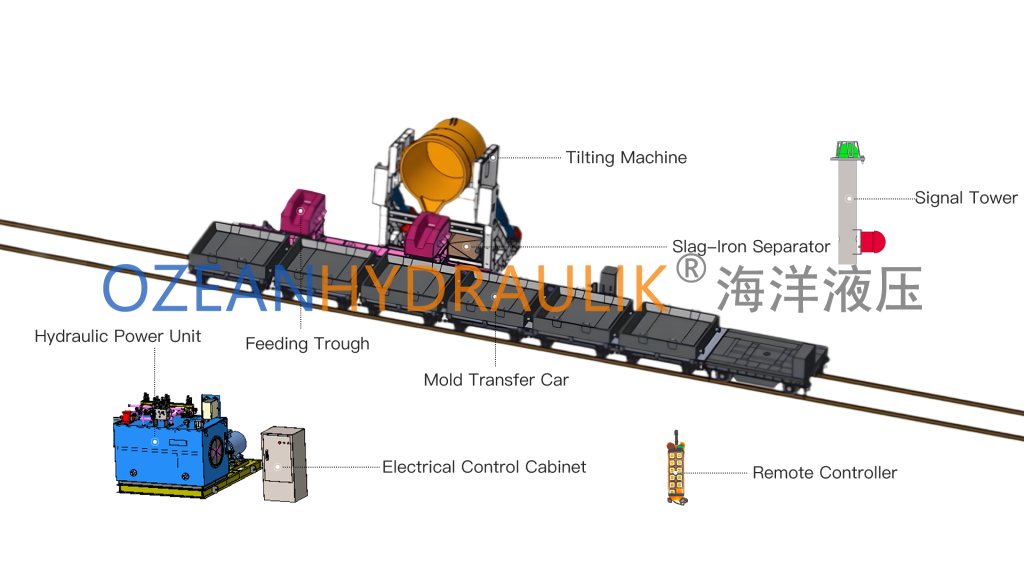

Processing

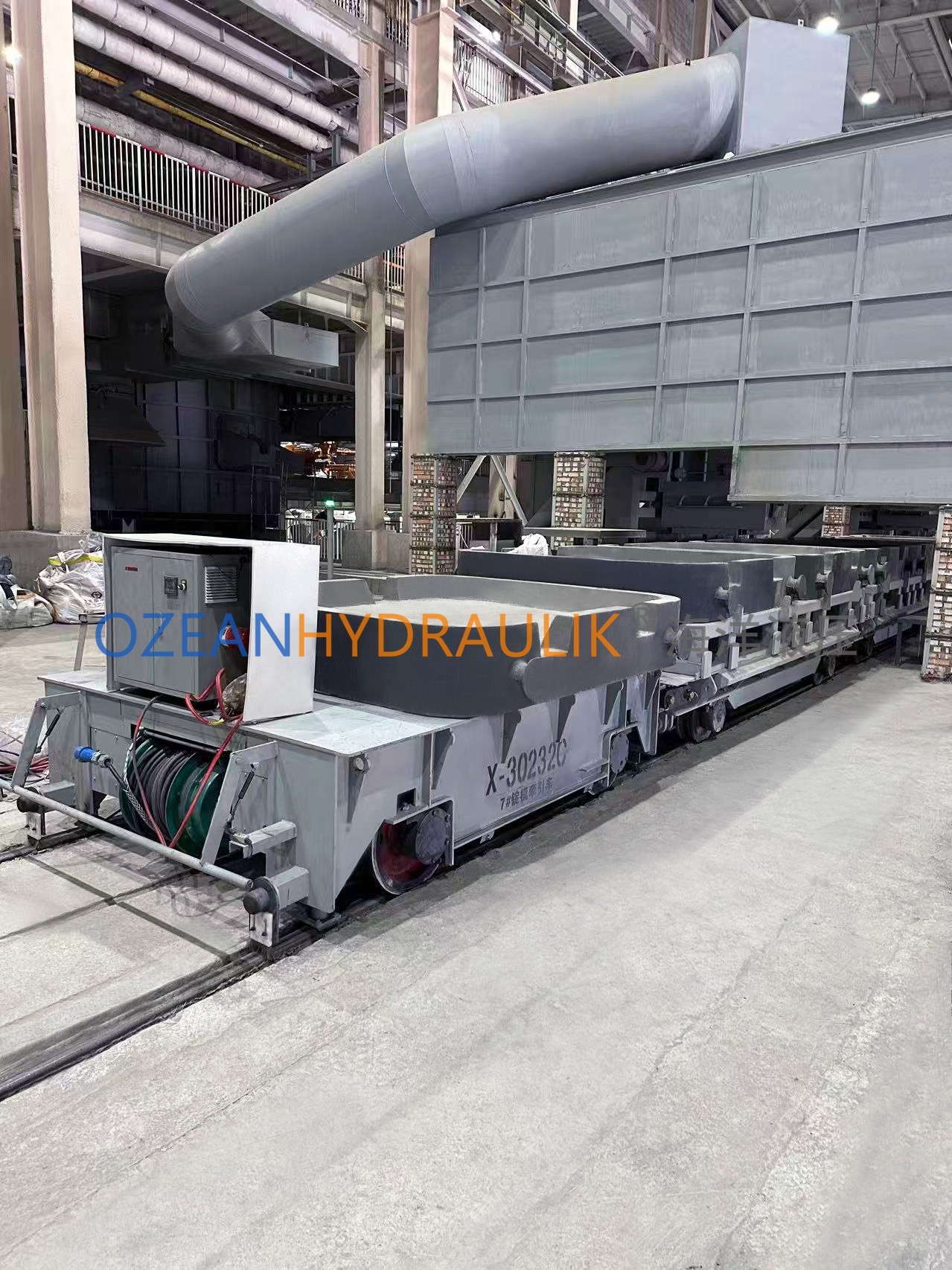

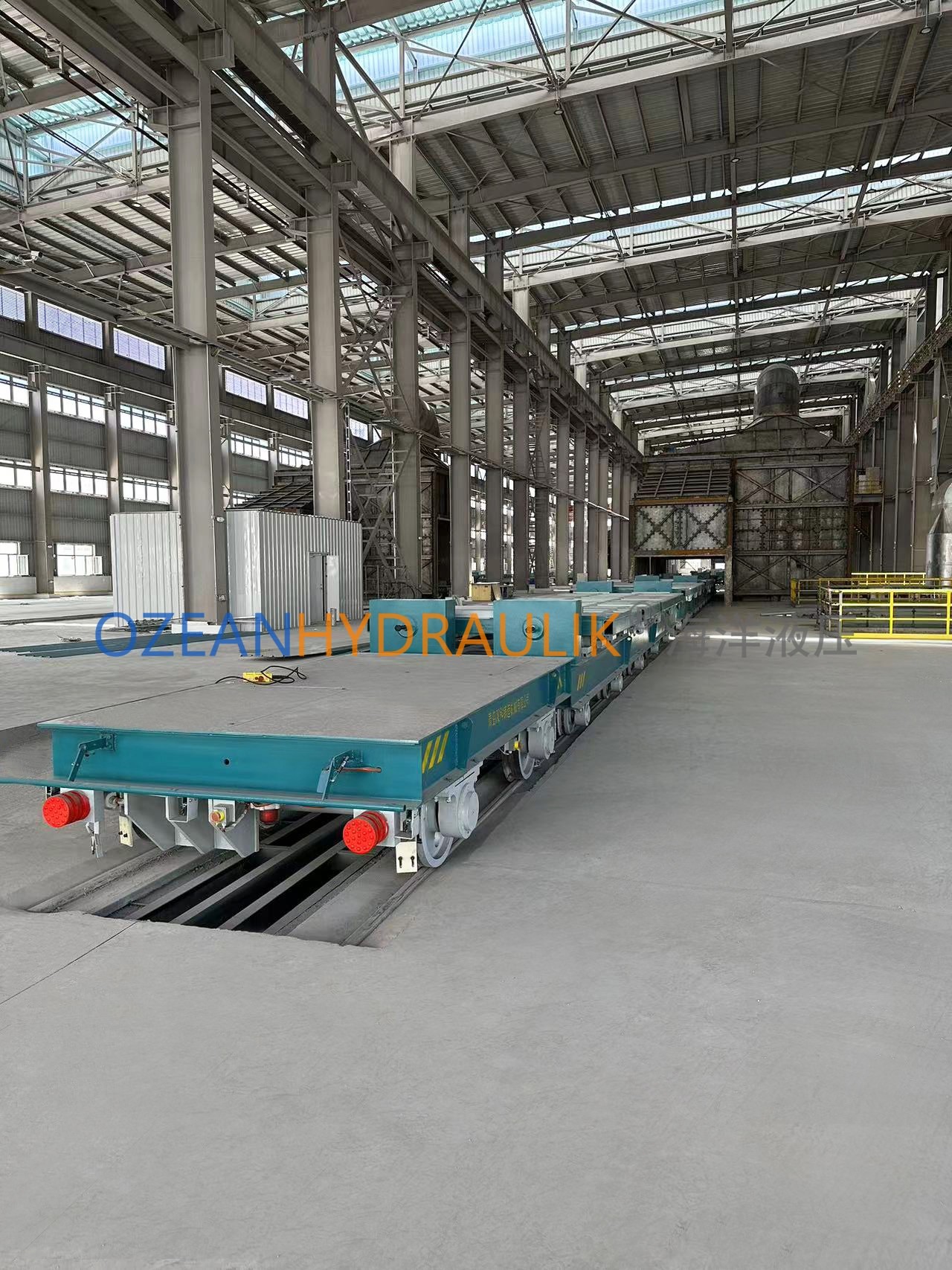

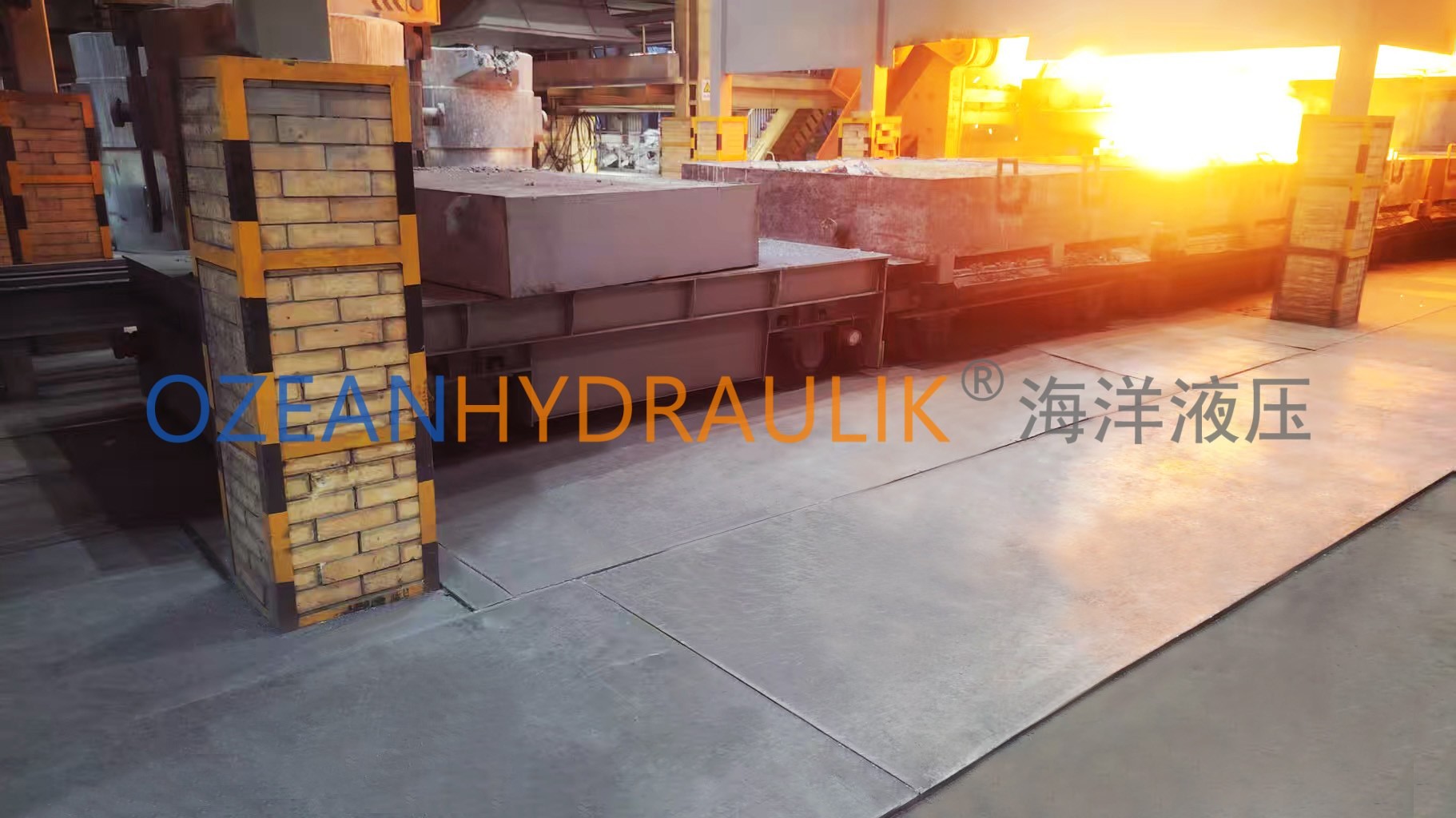

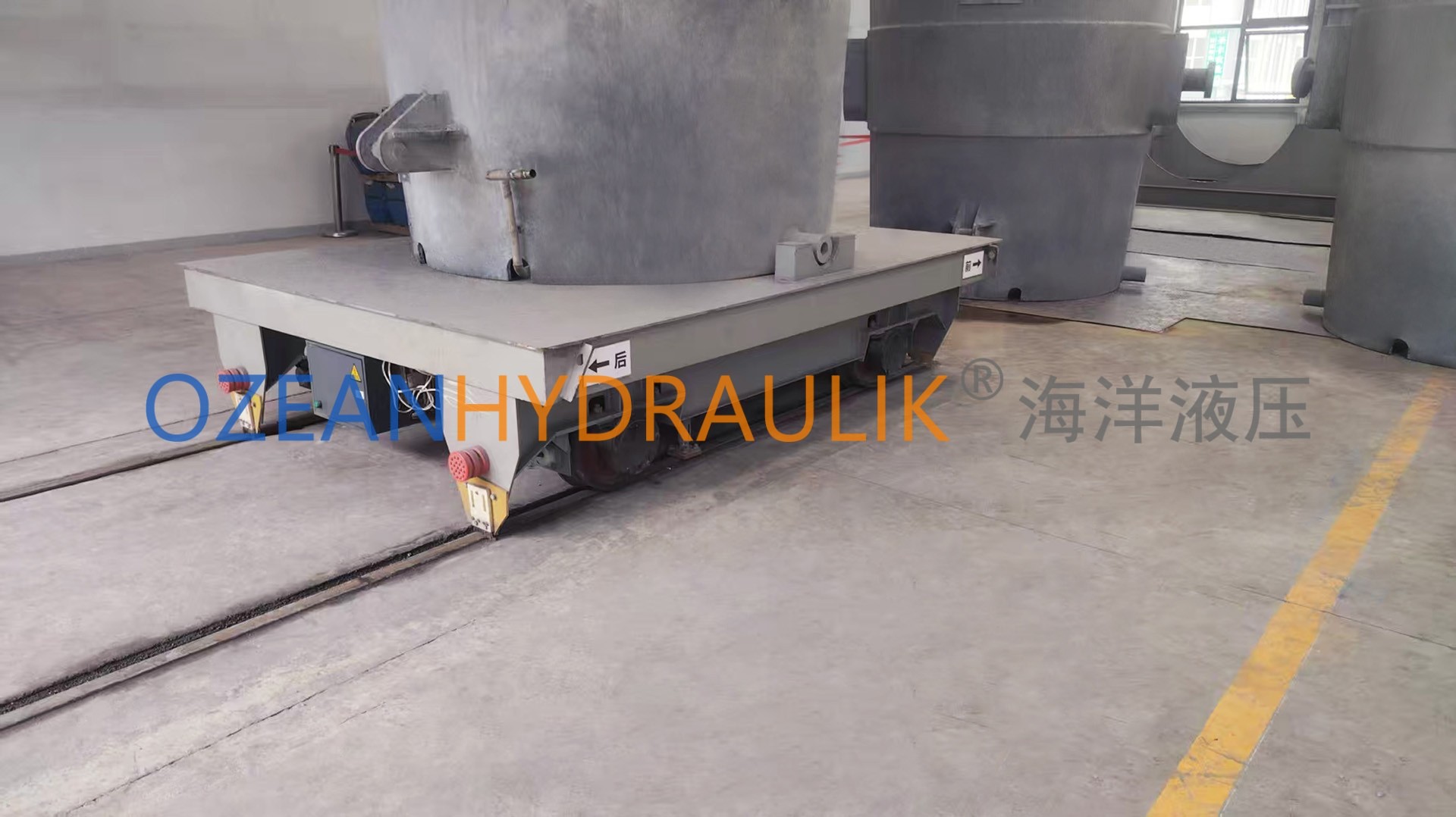

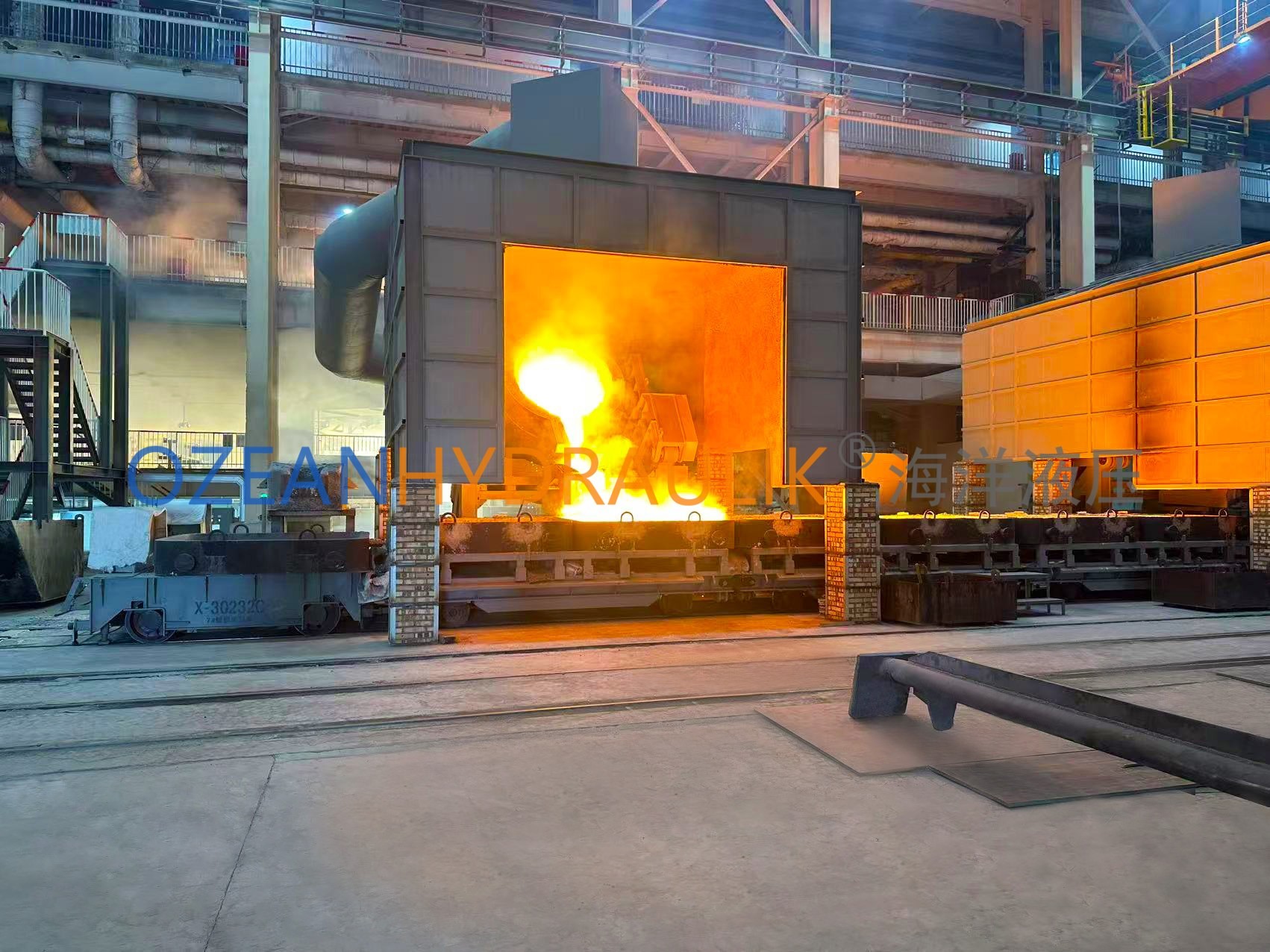

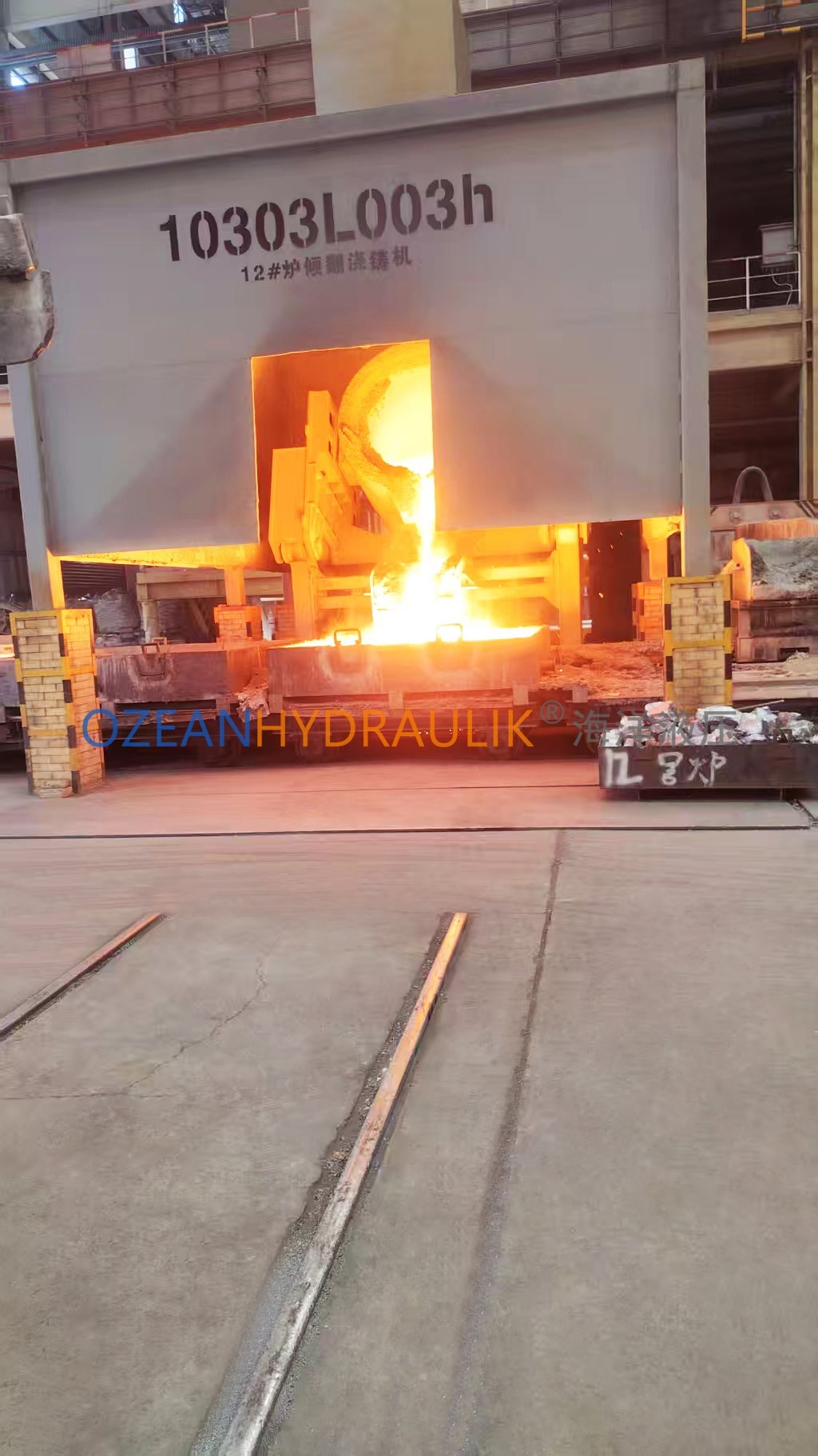

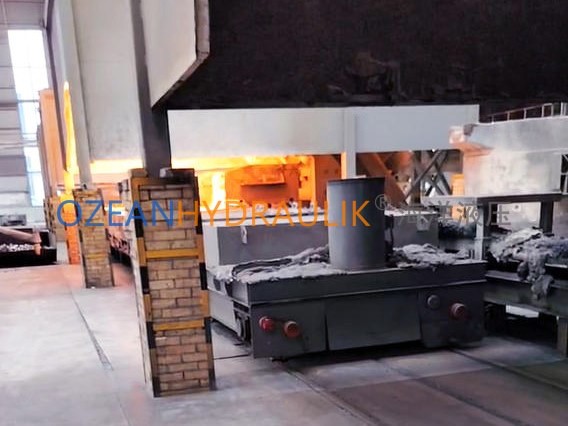

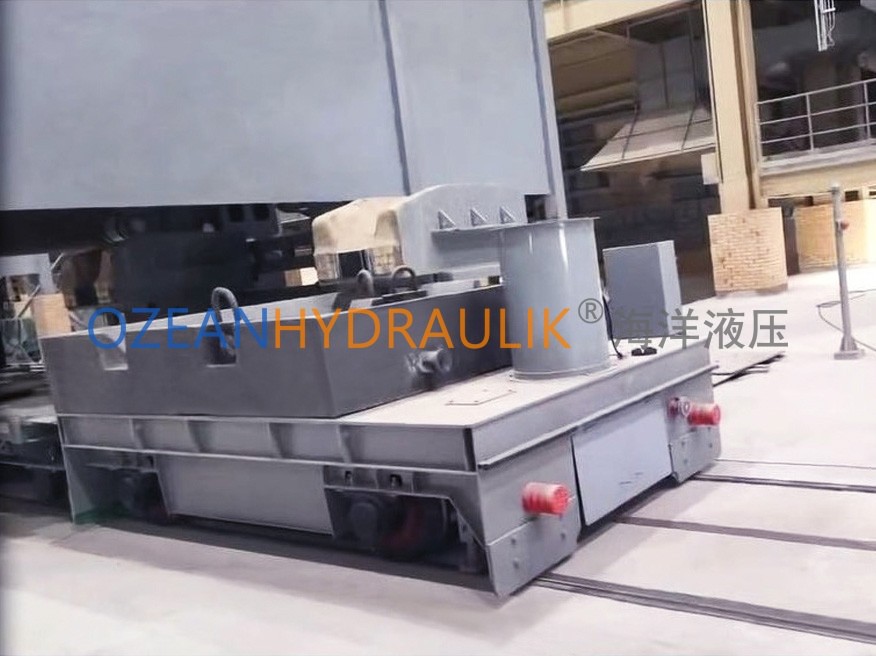

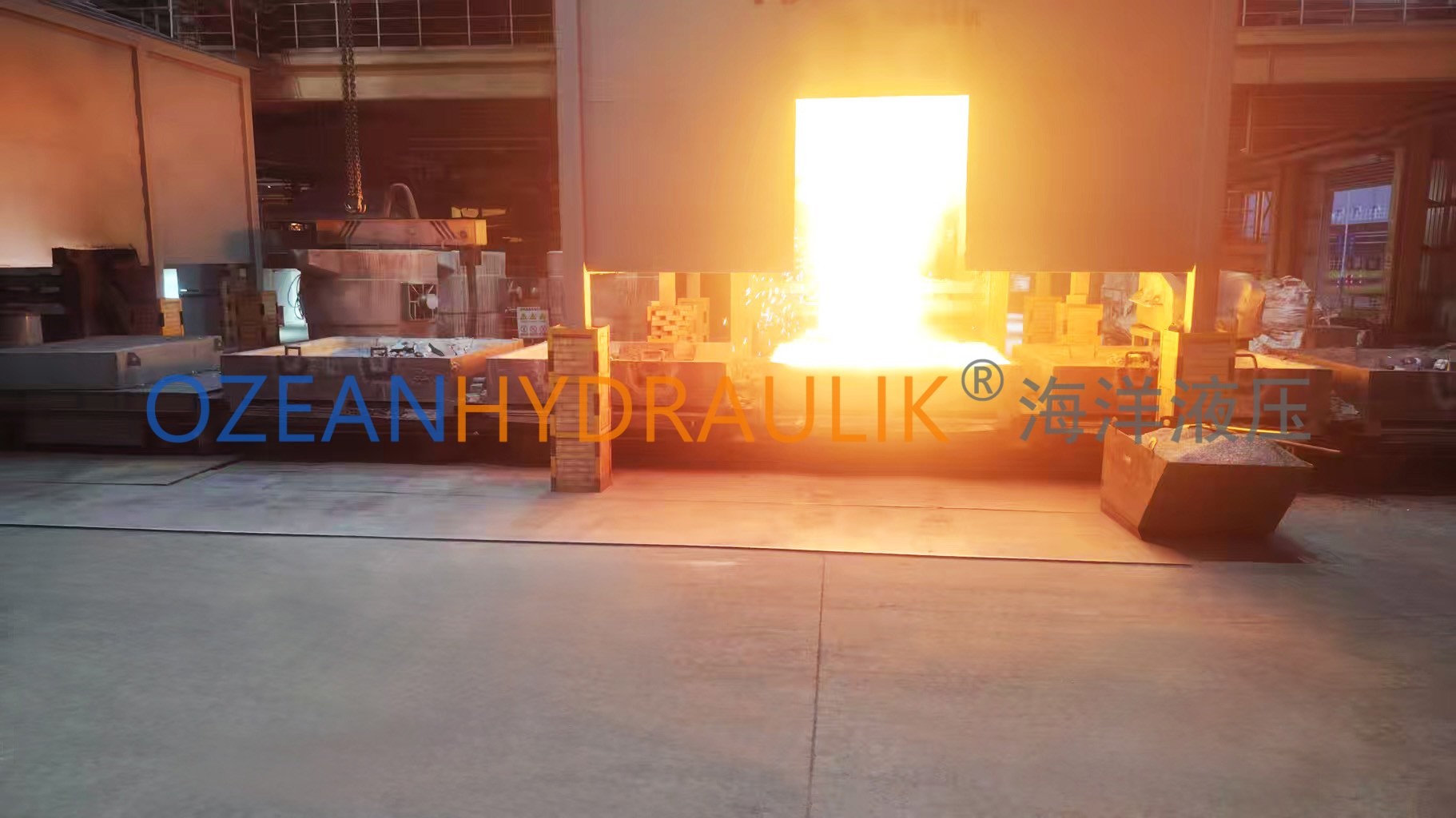

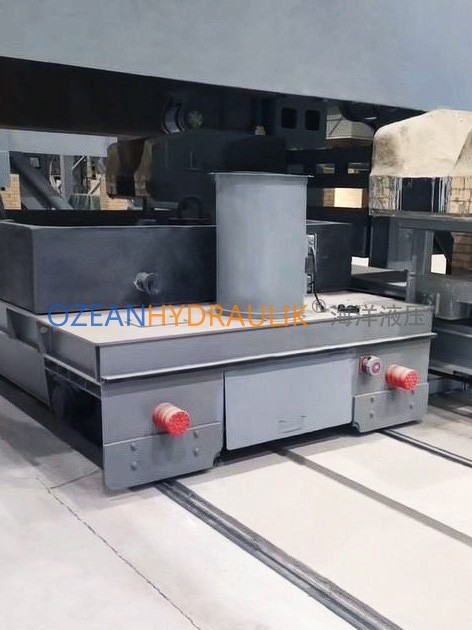

on-site

Main Parameter

Key Performance Parameters
Model GD
Table Dimensions 2920mm × 2100mm
Traction Capacity 120t
Load Capacity 20t
Voltage 380V
Track Gauge Center Distance 1600mm
Reducer KA-107 × 2
Wheel Diameter 500mm
Motor Power YEJ-7.5kW × 2
Speed 8-15.3 m/min
Product Technical Specifications
Model GD-6-2 GD-10-2 GD-6-1 GD-10-1 GD-16-1 GD-25-1 GD-40-1 GD-63-1 GD-100-1
GD-6-2S GD-10-2S GD-6-1S GD-10-1S GD-16-1S GD-25-1S GD-40-1S GD-63-1S GD-100-1S
Load Capacity (t) 6 10 6 10 16 25 40 63 100
Table Dimensions (mm) Width 1600 2000 2200 2500 2800
Length 3200 3600 4000 4500 5000 5600 6300
Height 520 650 700 850 900
Bottom Clearance from Rail Surface (mm) 50 60
Speed (m/min) 30 25 20
Motor Power (kW) 1.5 2.2 - 3 4.5 6.3
Track Gauge (mm) 762 1435

Table dimensions, tonnage, and inner rail distance can all be customized.
