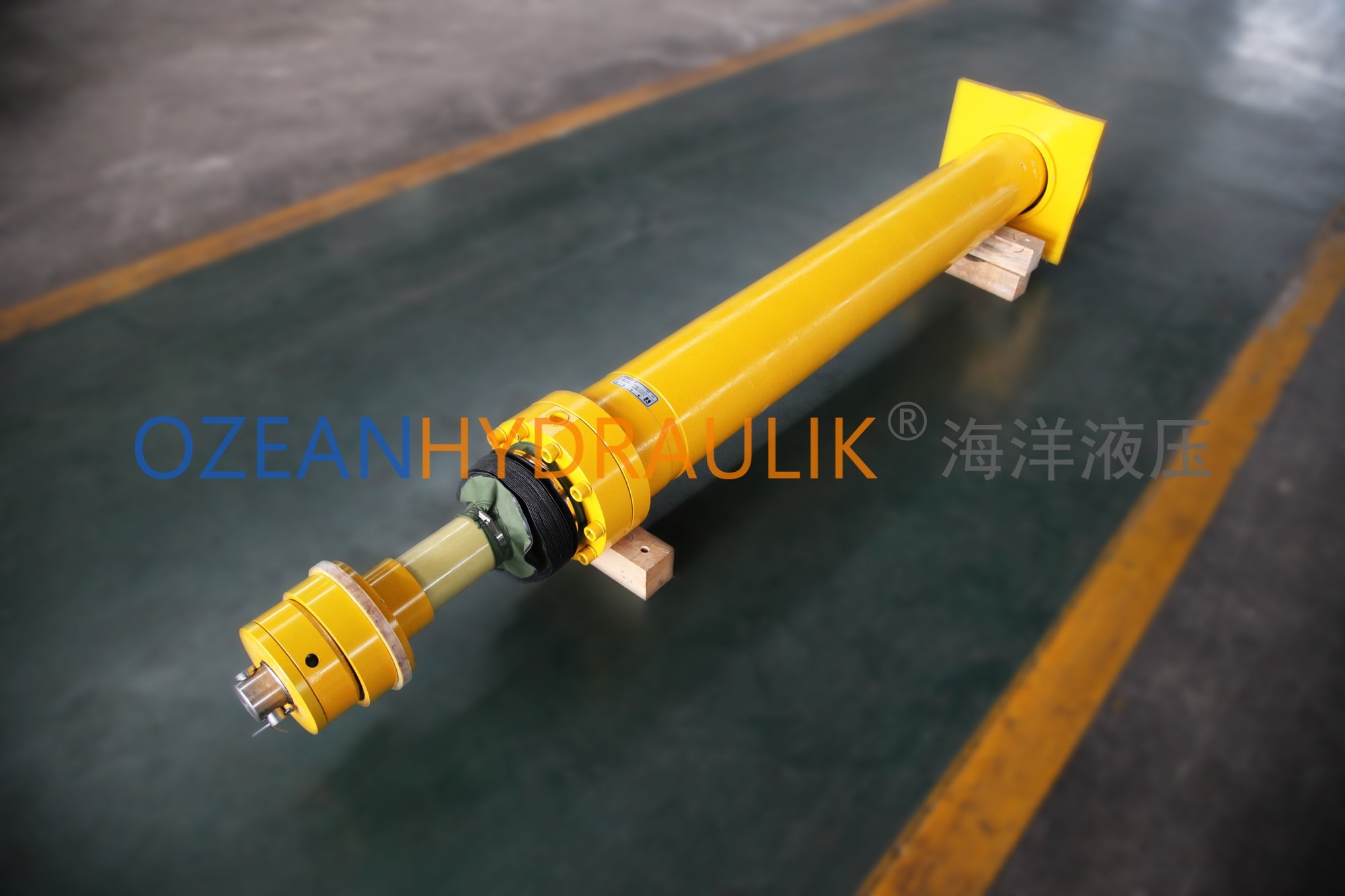

Electrode lift hydraulic cylinder
Electrode lift hydraulic cylinder - Image 2
Electrode lift hydraulic cylinder - Image 3
Electrode lift hydraulic cylinder - Image 4

Electrode lift hydraulic cylinder

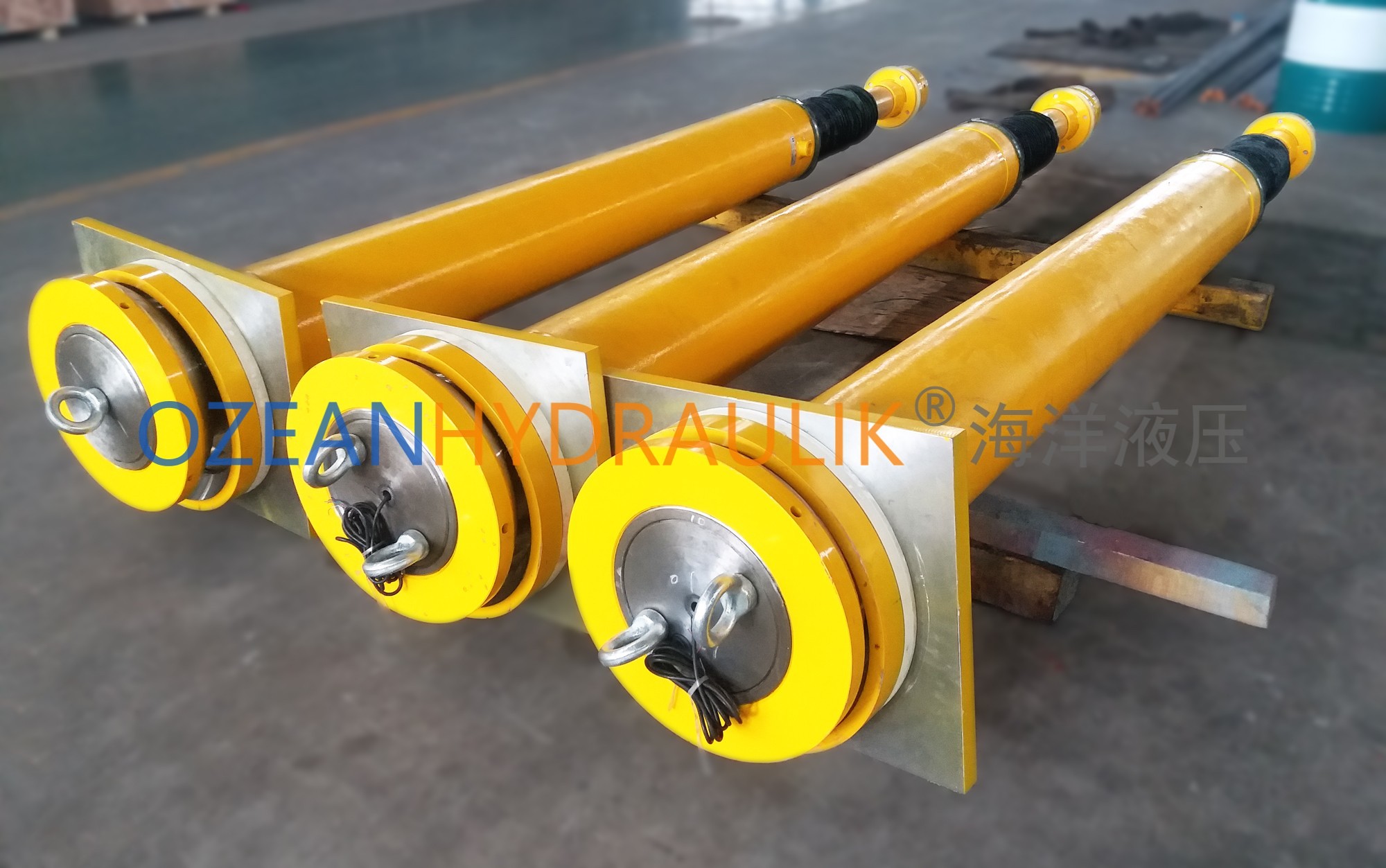

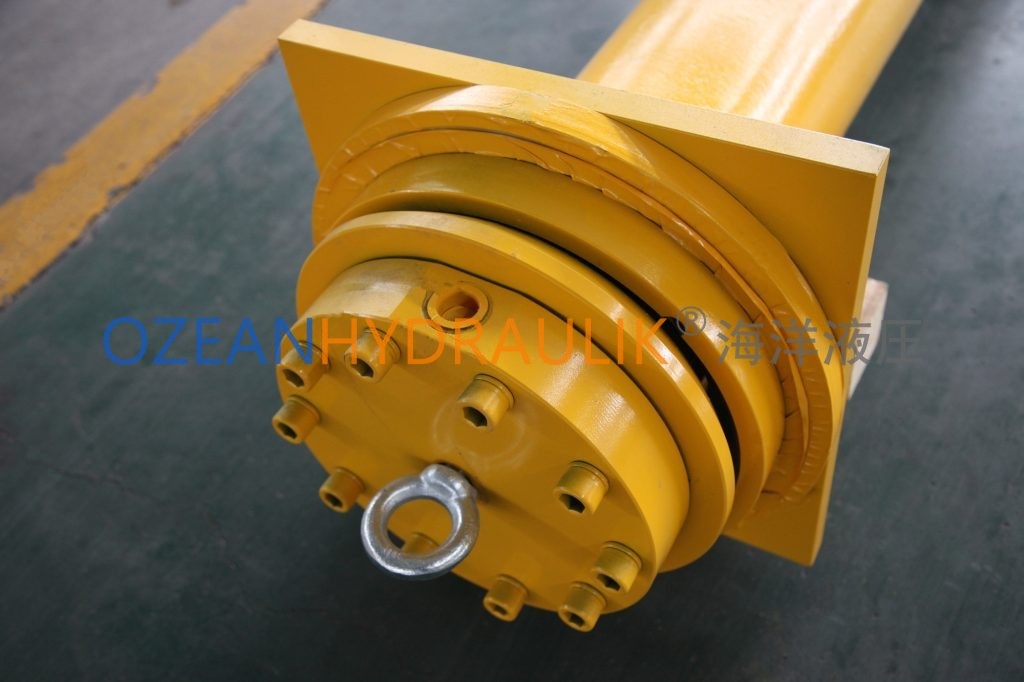

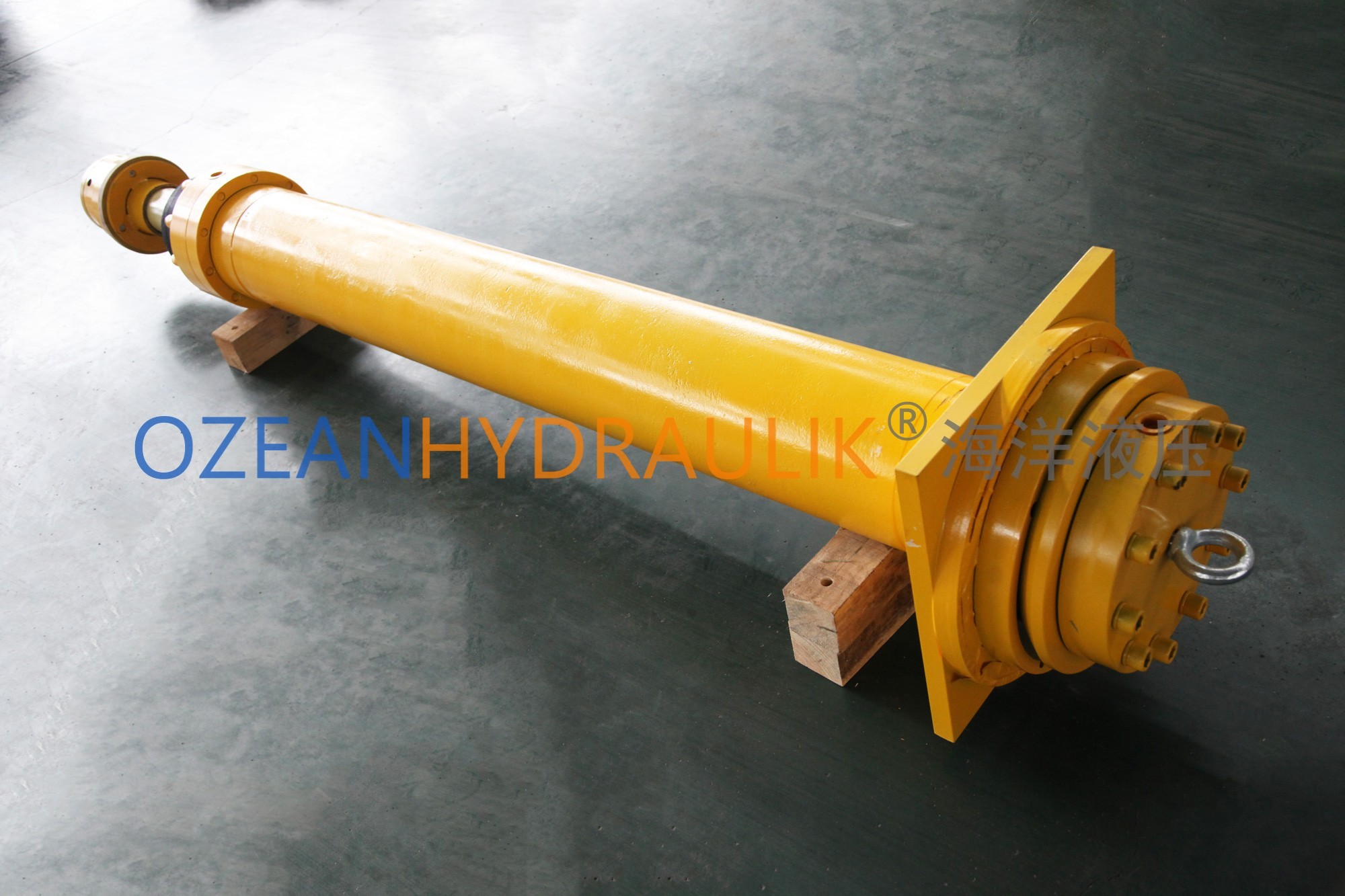

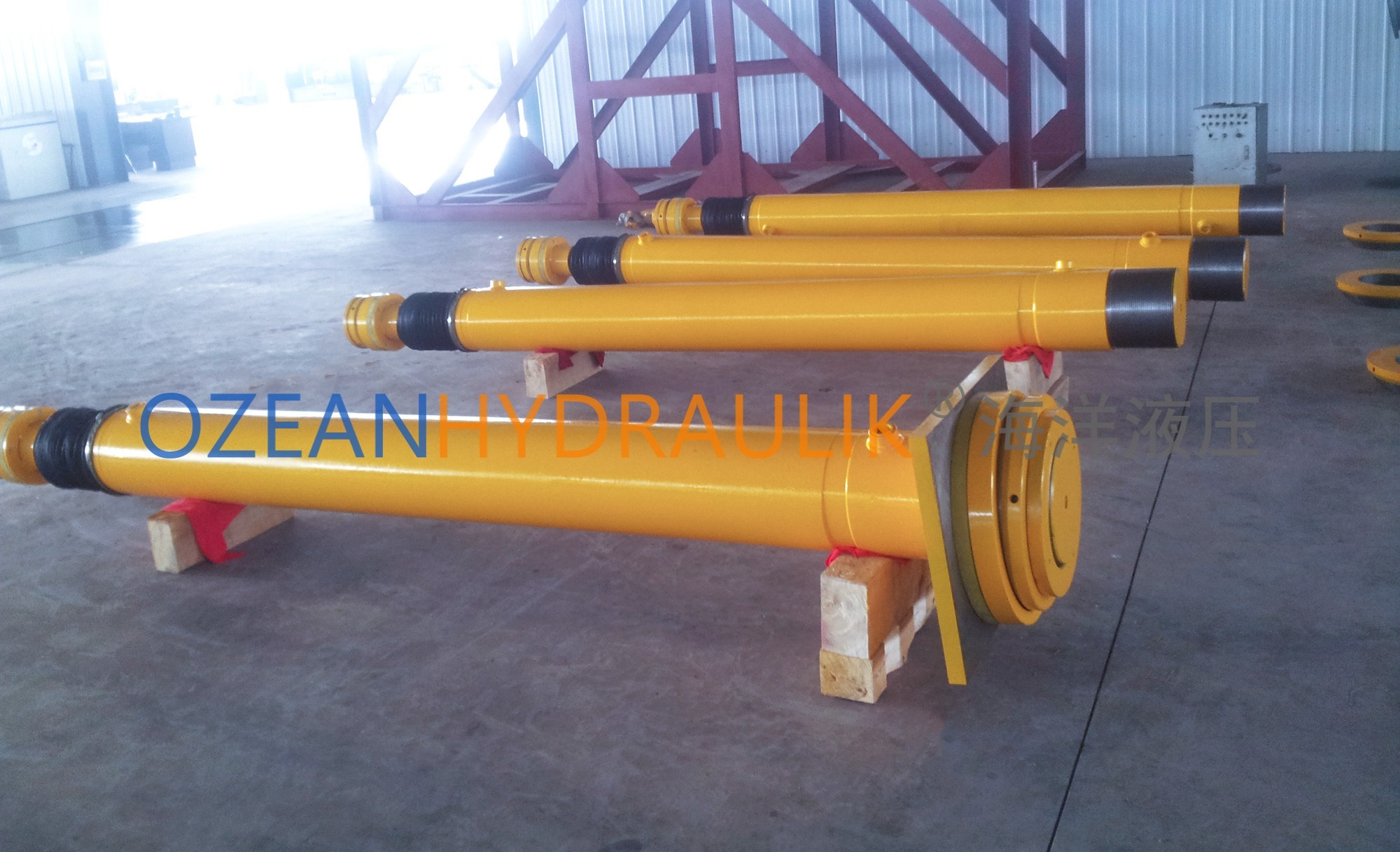

The hydraulic cylinders for electrode lifting in the submerged arc furnace adopt the American Vickers double-ball-seat structure, ensuring no dead points during electrode movement, uniform force distribution, and smoother operation.

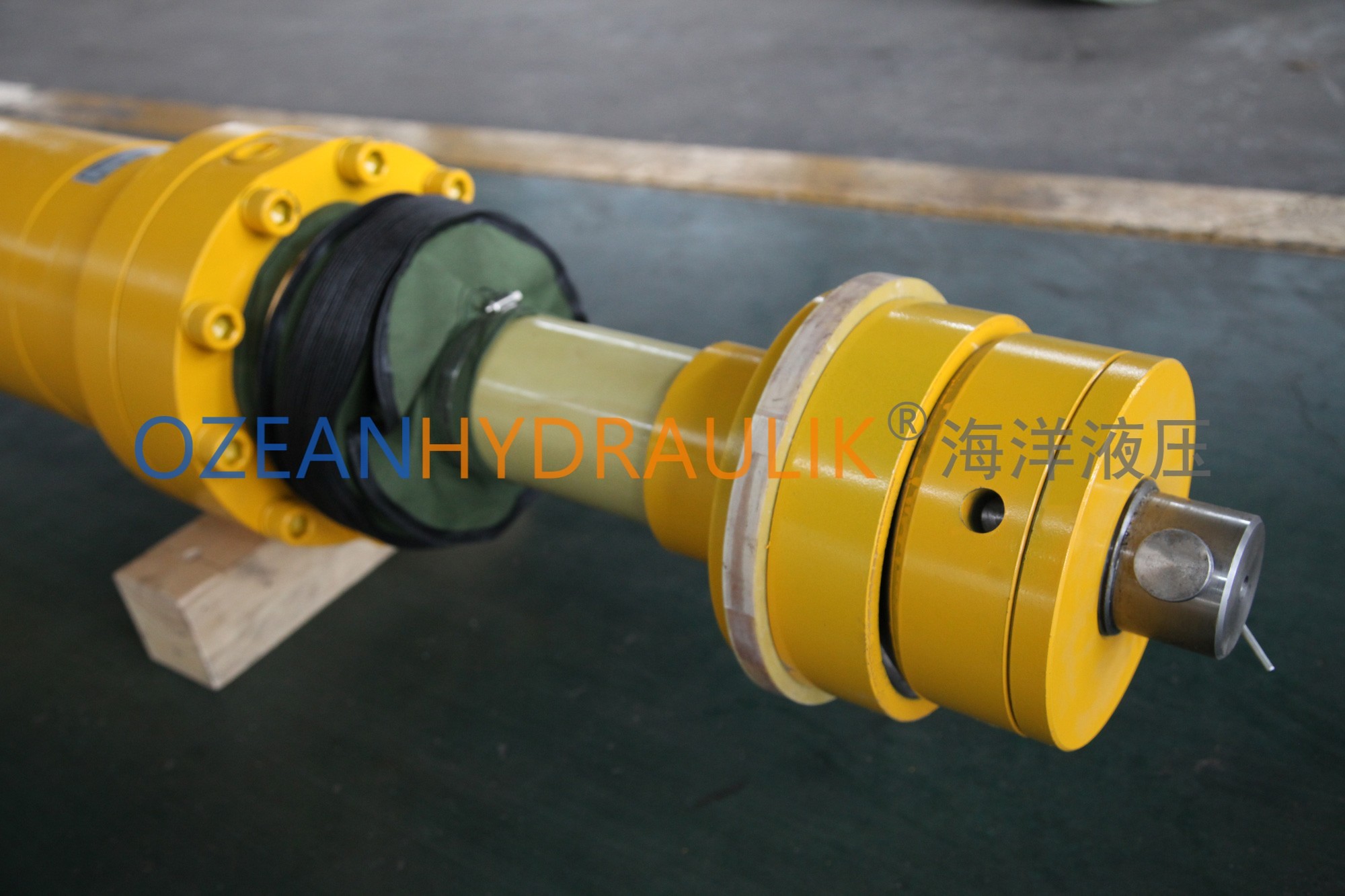

The lifting cylinder and piston rod are equipped with flame-retardant protective sleeves, which provide dustproof, impact-resistant, and flame-retardant functions during the piston rod’s operation.

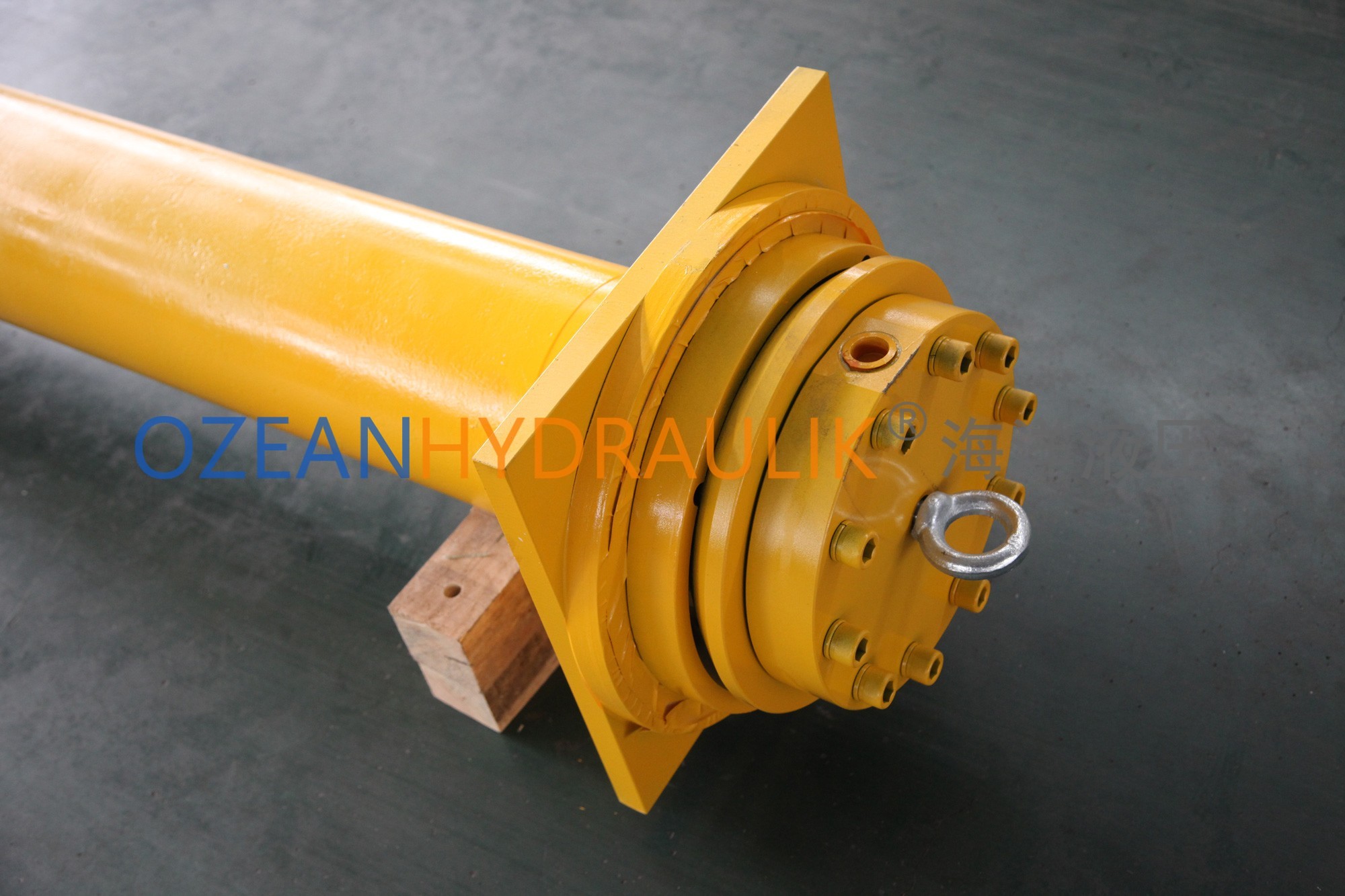

Both the upper and lower spherical seats of the lifting cylinder are fitted with insulating pads, which partially isolate electrical current and effectively prevent short circuits or leakage incidents from occurring.

Electrode lift hydraulic cylinder

Equipment Introduction:

The hydraulic cylinders for electrode lifting in the submerged arc furnace adopt the American Vickers double-ball-seat structure, ensuring no dead points during electrode movement, uniform force distribution, and smoother operation.

The lifting cylinder and piston rod are equipped with flame-retardant protective sleeves, which provide dustproof, impact-resistant, and flame-retardant functions during the piston rod’s operation.

Both the upper and lower spherical seats of the lifting cylinder are fitted with insulating pads, which partially isolate electrical current and effectively prevent short circuits or leakage incidents from occurring.

Product Description

Processing

Packaging & Shipping

Blueprints / Drawings

Note: These drawings are for reference only. The final design will be customized based on your requirements.

Outline Drawing

Hydraulic Circuit Diagram

Main Parameter

Cylinder Bore φ150~φ400
Stroke L=1000~3000mm
Connection Method Ball Seat
Operating Pressure 12MPa
Accessory With Dust Cover

The above parameters are for reference; customization is available according to specific requirements.
